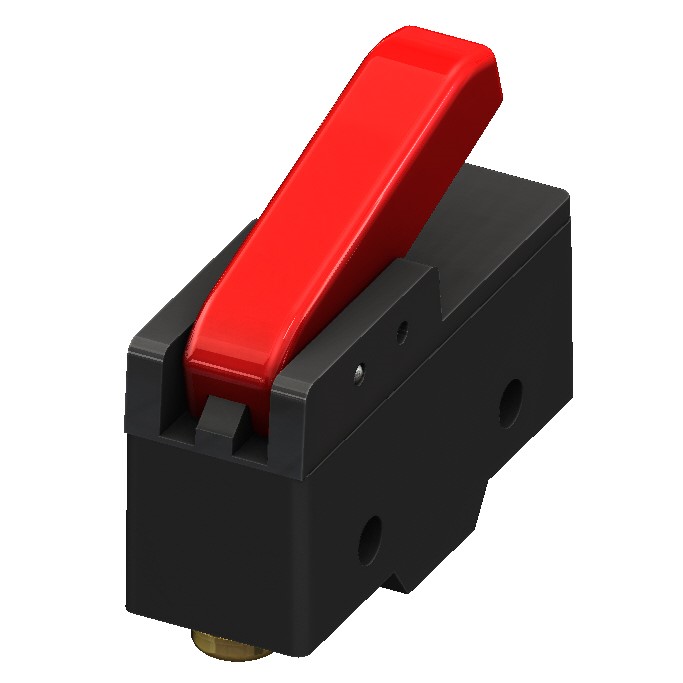

MJG--MJ2-1708 PH--T3

MJG–MJ2-1708 PH–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT Snap-Act Basic Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–MJ2-1708 PH–T3

• Description：SPDT Snap-Act Basic Switch
• Series：MJ2
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：15A (AC), 0.5A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Push Lever
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP40
• Features：-
• Operating Force：180gf
• Release Force：40gf
• Operating Position：-
• Pretravel：0.236" (6.0mm)
• Differential Travel：0.060" (1.5mm)
• Overtravel：0.055" (1.4mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJG–MJ2-1708 PH–T3
