MMFTP6312D is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists Diotec Semiconductor. Its product description is MOSFET SOT26 P -20V 0.115OHM. Review the specifications below when checking this part for your BOM.
FET, MOSFET Arrays specifications for MMFTP6312D
- Description：MOSFET SOT26 P -20V 0.115OHM
- Series：-
- Mfr：Diotec Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：-
- Configuration：-
- FET Feature：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：2.3A
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：-
- Operating Temperature：-
- Mounting Type：Surface Mount
- Package / Case：SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package：SOT-26
- Grade：-
- Qualification：-
FET, MOSFET Arrays datasheet and documents for MMFTP6312D
FET, MOSFET Arrays Overview

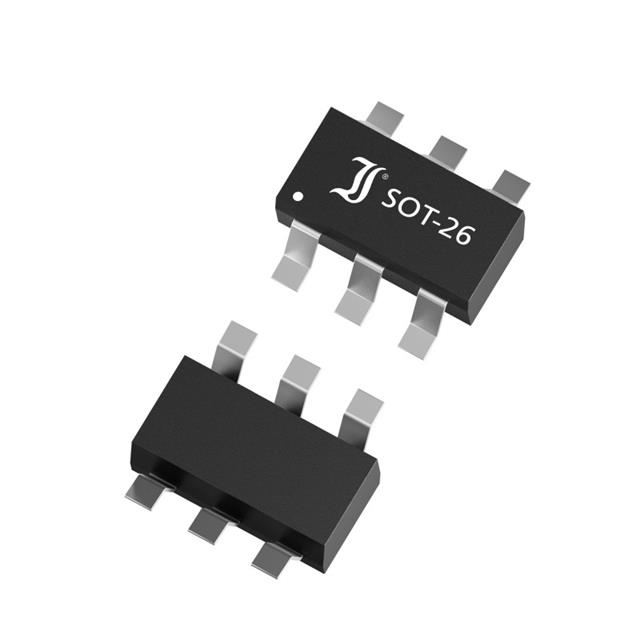

The MMFTP6312D is a dual P-Channel MOSFET manufactured by Diotec Semiconductor, housed in an SOT-26 (SOT-457) surface-mount package. It features a drain-source voltage rating of -20 V and a continuous drain current of -2.3 A at 25°C. The device exhibits a maximum on-state resistance of 115 mΩ at VGS = -4.5 V and ID = -2.3 A. Total power dissipation reaches 0.96 W when mounted on a PCB with an 80 mm² copper pad at the drain terminal. The junction temperature range spans from -55°C to +150°C.
FET, MOSFET Arrays Feature Summary
- Dual configuration providing two independent P-channel MOSFETs within a single compact footprint for space-constrained designs.
- Fast switching times optimized for efficient signal processing and driver stage applications.
- Compliant with RoHS directives without exemptions and adheres to REACH regulations regarding conflict minerals.
FET, MOSFET Arrays Applications
- Signal processing circuits
- Battery management systems
- Driver stages
- Logic level converters
FET, MOSFET Arrays Procurement Notes
Verify the specific ordering suffix to confirm compliance requirements. Standard versions are designated for commercial and industrial use. Suffixes such as -Q or -AQ indicate AEC-Q101 qualification status. Confirm that the requested variant matches the intended reliability grade before finalizing procurement specifications.
FET, MOSFET Arrays Selection Notes
Select this component for low-voltage logic interfacing where dual channel isolation is required. Ensure thermal design accommodates the specified RthJA of less than 130 K/W for ambient cooling. Verify gate drive voltages remain within the ±8 V limit to prevent breakdown while maintaining adequate threshold control for the 115 mΩ on-resistance specification.
FET, MOSFET Arrays Part Context
This component belongs to Diotec's portfolio of small-signal and logic-level MOSFETs designed for general-purpose switching. It utilizes silicon technology packaged in the industry-standard SOT-26 outline. The device serves as a standard-grade solution for commercial electronics, distinct from automotive-specific variants which carry additional qualification markings.
FET, MOSFET Arrays Replacement Considerations
No official substitute part numbers are documented in the provided datasheet. When evaluating alternatives, match the SOT-26 package dimensions, -20 V VDS rating, and dual P-Channel configuration. Verify that replacement devices offer comparable RDS(on) values and thermal resistance characteristics to ensure circuit performance parity.
