MRF101AN-START

Overview

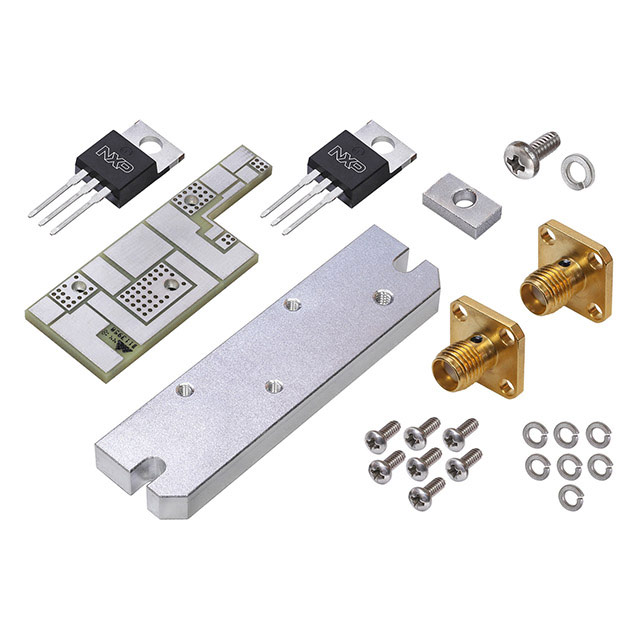

The MRF101AN-START is a Sub-GHz development tool and reference design board manufactured by NXP Semiconductors. It serves as an evaluation kit for the MRF101AN 100W RF power transistor, designed for rapid assessment and prototyping. The kit includes a custom 0.7” x 2” PCB (1.8 cm x 5.1 cm) equipped with SMA connectors for signal interfacing. It supports operation at frequencies such as 50 MHz and utilizes a working supply voltage of 50 V. The package contains essential hardware components including stainless steel machine screws, spring lock washers, and aluminum rectangular washers to facilitate assembly.

Feature Summary

• Designed for rapid evaluation and prototyping of the MRF101AN 100W RF power transistor
• Includes a custom printed circuit board with integrated SMA connectors for signal access
• Provides necessary mechanical fasteners and mounting hardware for setup

Applications

• Evaluation of MRF101AN RF power transistor performance
• Prototyping for High Frequency and Very High Frequency communication systems
• Industrial, Scientific, and Medical (ISM) broadcast applications

Procurement Notes

Verify the specific contents of the MRF101AN-START kit against the official NXP documentation before procurement. Confirm that the included PCB dimensions and connector types match your integration requirements. Ensure compatibility with the 50 V operating voltage specified for the MRF101AN device. Check for any updates regarding the availability of the MRF101AN component itself, as development tools may depend on the status of the underlying semiconductor product.

Selection Notes

Select this kit specifically for evaluating the MRF101AN 100W RF power transistor. It is intended for engineers requiring a physical reference circuit for testing in sub-GHz frequency ranges. Consider the inclusion of SMA connectors if your test setup requires standard RF interfaces. This tool is suitable for initial characterization rather than final production deployment.

Part Context

This part belongs to the MRF101AN series of Sub-GHz development tools from NXP Semiconductors. It complements other variants like the MRF101AN-50MHZ and MRF101AN-230MHZ by providing a general essentials kit. These tools are categorized under reference design boards used for assessing the robustness and performance of the MRF101AN device in linear and Class C operations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
