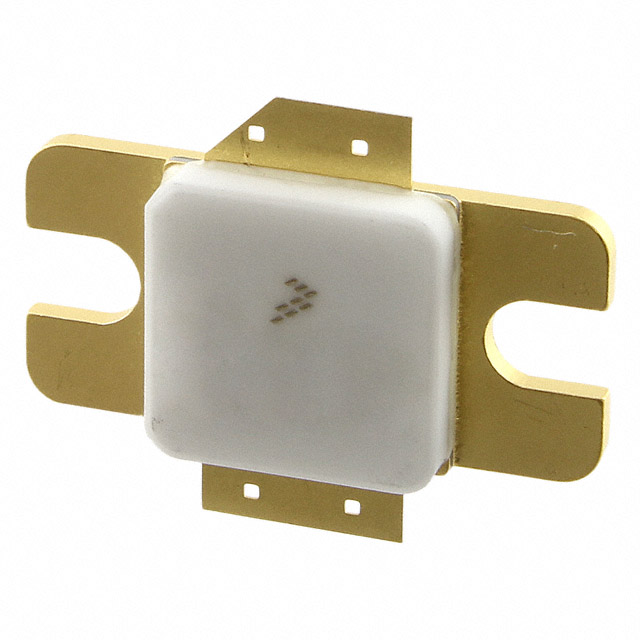

MRF6S21050LR3

MRF6S21050LR3

  • Description:RF MOSFET LDMOS 28V NI400
  • Series:-

SKU:f36ebd34f290 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline:86-132-6715-2157

email:[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description:RF MOSFET LDMOS 28V NI400
  • Series:-
  • Mfr:NXP USA Inc.
  • Package:Tape & Reel (TR)
  • Technology:LDMOS
  • Frequency:2.16GHz
  • Gain:16dB
  • Voltage - Test:28 V
  • Current Rating (Amps):-
  • Noise Figure:-
  • Current - Test:450 mA
  • Power - Output:11.5W
  • Voltage - Rated:68 V
  • Grade:-
  • Qualification:-
  • Mounting Type:Chassis Mount
  • Package / Case:NI-400
  • Supplier Device Package:NI-400
  • Configuration:-

Download product information

MRF6S21050LR3

Overview

The MRF6S21050LR3 is an N-channel enhancement-mode lateral MOSFET designed for W-CDMA base station applications operating between 2110 and 2170 MHz. It delivers 11.5 Watts average output power at 28 Volts with a drain efficiency of 27.7%. The device features internal matching, ESD protection, and supports up to 32 VDD operation.

Feature Summary

  • Internally matched input and output networks for simplified circuit design
  • Integrated electrostatic discharge (ESD) protection mechanisms
  • Qualified for maximum 32 VDD operation capability

Applications

  • W-CDMA base station amplifiers
  • TDMA and CDMA amplifier applications
  • Multicarrier amplifier designs
  • PCS/cellular radio systems
  • Wireless Local Loop (WLL) applications

Procurement Notes

Verify the specific ordering suffix against current manufacturer documentation to confirm package type and reel specifications. Confirm RoHS compliance status and check for any product change notifications or lifecycle updates that may affect availability or manufacturing origin before finalizing procurement plans.

Selection Notes

Select this component for broadband RF power amplification in cellular infrastructure. Ensure thermal management meets the junction-to-case resistance requirements. Validate impedance matching networks using the provided series equivalent large-signal impedance parameters for optimal performance across the specified frequency range.

Part Context

This part belongs to the Freescale Semiconductor RF Power Field Effect Transistors family. It is specifically engineered as an LDMOS device for high-linearity wireless communication applications. The datasheet provides detailed electrical characteristics and test circuit schematics for system integration.

Replacement Considerations

MRF6S21050LSR3

FAQ

What is the typical power gain at 2157 MHz?

The typical power gain is 16 dB under standard functional test conditions.

How does the device handle voltage standing wave ratio (VSWR)?

It is capable of handling a 10:1 VSWR at 28 Vdc and 2140 MHz with 50 Watts CW output power.

What are the maximum ratings for gate-source voltage?

The maximum gate-source voltage rating is -0.5 to +12 Vdc.
