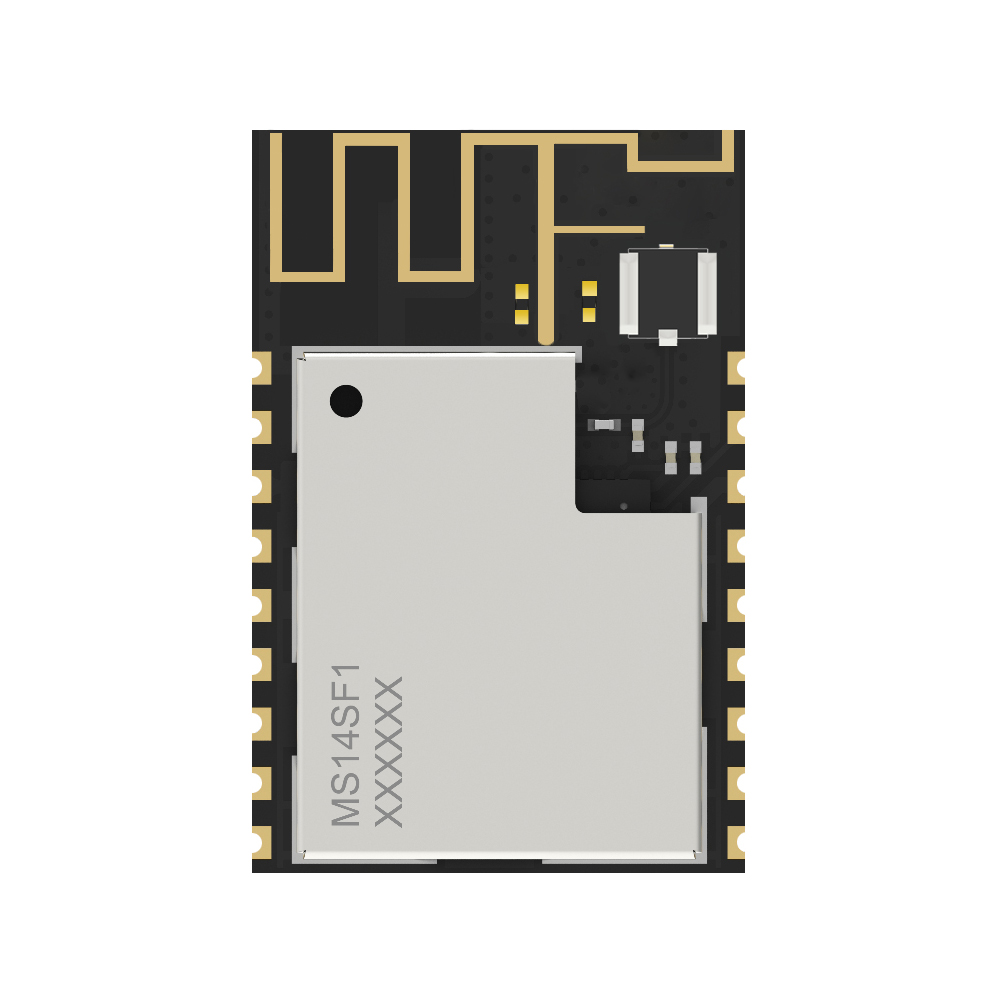

MS14SF1-1N02AIR

RF Transceiver Modules And Modems Overview

The MS14SF1-1N02AIR is a low-power Wi-Fi 6 module based on the nRF7002 SoC, featuring dual-band 2.4GHz and 5.8G support with a 1T1R transceiver architecture. It integrates an LNA and supports WPA3/WPA2/WPA encryption. The module operates in STA and AP modes, includes TWT support for power optimization, and offers optional external antenna connectivity. Designed for seamless integration into existing host systems, it provides high-speed, low-latency wireless connectivity suitable for space-constrained IoT applications.

RF Transceiver Modules And Modems Feature Summary

• Integrates Nordic nRF7002 Wi-Fi 6 co-processor for dual-band 2.4GHz and 5.8G communication
• Supports Target Wake Time (TWT) to optimize power consumption in IoT devices
• Includes integrated Low Noise Amplifier (LNA) and multiple encryption standards
• Offers flexible antenna options including support for external interfaces

RF Transceiver Modules And Modems Applications

• Smart home appliances and sensors
• Industrial monitoring and automation
• Medical health monitoring devices
• Security surveillance equipment

RF Transceiver Modules And Modems Procurement Notes

Verify that the specific suffix '1N02AIR' corresponds to the Tape & Reel (TR) packaging format as indicated by distributor listings. Confirm compatibility with the MS14EX1 development kit if prototyping is required. Ensure the host system design accommodates the module's RF requirements and antenna placement specifications provided in the official datasheet.

RF Transceiver Modules And Modems Selection Notes

Select this module when a dedicated Wi-Fi 6 radio is needed for an existing microcontroller-based system rather than a full SoC solution. It is appropriate for applications requiring dual-band connectivity and low power consumption via TWT. Consider the MS12SF1 or ME16WS03 variants if integrated MCU capabilities or BLE are required instead of a pure transceiver module.

RF Transceiver Modules And Modems Part Context

The MS14SF1 series represents Minewsemi's entry into Wi-Fi 6 modules utilizing the Nordic nRF7002 platform. This family targets cost-effective, high-performance wireless connectivity for IoT devices. The MS14SF1-1N02AIR specifically denotes the variant configured for tape-and-reel manufacturing, facilitating automated surface-mount assembly in high-volume production environments.

RF Transceiver Modules And Modems Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. For equivalent functionality, evaluate other modules based on the nRF7002 chipset from different manufacturers or Minewsemi's own MS12SF1 and ME16WS03 models depending on whether MCU integration or BLE is necessary.
