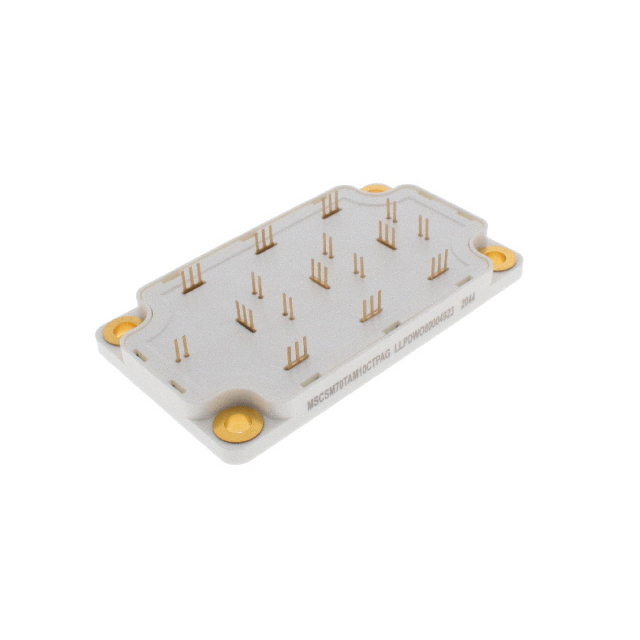

MSCSM70TAM10CTPAG

MSCSM70TAM10CTPAG is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is MOSFET 6N-CH 700V 238A SP6-P. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for MSCSM70TAM10CTPAG

• Description：MOSFET 6N-CH 700V 238A SP6-P
• Series：-
• Mfr：Microchip Technology
• Package：Tube
• Technology：Silicon Carbide (SiC)
• Configuration：6 N-Channel (3-Phase Bridge)
• FET Feature：-
• Drain to Source Voltage (Vdss)：700V
• Current - Continuous Drain (Id) @ 25°C：238A (Tc)
• Rds On (Max) @ Id, Vgs：9.5mOhm @ 80A, 20V
• Vgs(th) (Max) @ Id：2.4V @ 8mA
• Gate Charge (Qg) (Max) @ Vgs：430nC @ 20V
• Input Capacitance (Ciss) (Max) @ Vds：9000pF @ 700V
• Power - Max：674W (Tc)
• Operating Temperature：-40°C ~ 175°C (TJ)
• Mounting Type：Chassis Mount
• Package / Case：Module
• Supplier Device Package：SP6-P
• Grade：-
• Qualification：-

FET, MOSFET Arrays datasheet and documents for MSCSM70TAM10CTPAG
