NFG0NCN162HL3D

Common Mode Chokes Overview

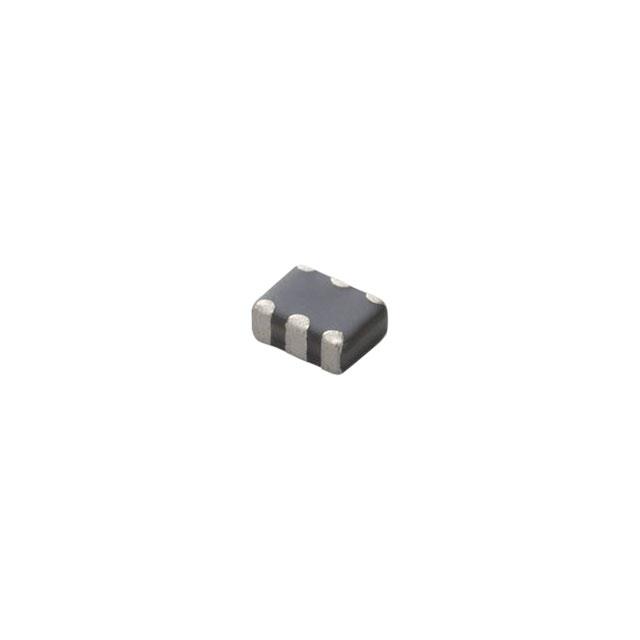

The Murata NFG0NCN162HL3D is a surface-mount common mode filter choke designed for differential signal interface lines. It operates within a temperature range of -40°C to +85°C and features an impedance of 25 Ohms at a test frequency of 100 MHz. The component supports a maximum DC current of 100 mA with a maximum DC resistance of 1.85 Ohms and a tolerance of 25%. Its compact physical dimensions are 0.9 mm in length, 0.68 mm in width, and 0.4 mm in height.

Common Mode Chokes Feature Summary

• Designed specifically for use on differential signal interface lines to suppress common mode noise.

Common Mode Chokes Applications

• Differential signal interface line filtering

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official Murata documentation to ensure correct packaging and variant selection. Confirm that the required impedance and current ratings align with the target circuit design before procurement. Cross-reference the manufacturer part number with authorized distributor listings to validate authenticity and availability status.

Common Mode Chokes Selection Notes

Select this component when space-constrained differential signaling requires low-profile EMI suppression. Ensure the operating environment remains within the specified -40°C to +85°C thermal limits. Verify that the 100 mA current rating meets the application's peak load requirements without exceeding the saturation characteristics defined in the datasheet.

Common Mode Chokes Part Context

This component belongs to the NFG0NCN-HL3 series of common mode chokes manufactured by Murata Electronics. It is categorized under inductors, chokes, and coils, specifically functioning as a filter for high-frequency noise reduction in sensitive electronic circuits.

Common Mode Chokes Replacement Considerations

The NFG0NCN162HL3B is documented as a related variant within the same product family. Verify electrical compatibility and pin configuration before substituting.
