Product Detailed Parameters
- Description：MOSFET 6N-CH 900V 620A SSDC39
- Series：-
- Mfr：onsemi
- Package：Bulk
- Technology：Silicon Carbide (SiC)
- Configuration：6 N-Channel (3-Phase Bridge)
- FET Feature：-
- Drain to Source Voltage (Vdss)：900V
- Current - Continuous Drain (Id) @ 25°C：620A (Tj)
- Rds On (Max) @ Id, Vgs：2.1mOhm @ 620A, 18V
- Vgs(th) (Max) @ Id：4.3V @ 200mA
- Gate Charge (Qg) (Max) @ Vgs：2400nC @ 18V
- Input Capacitance (Ciss) (Max) @ Vds：45000pF @ 400V
- Power - Max：1kW (Tj)
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：SSDC39
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview

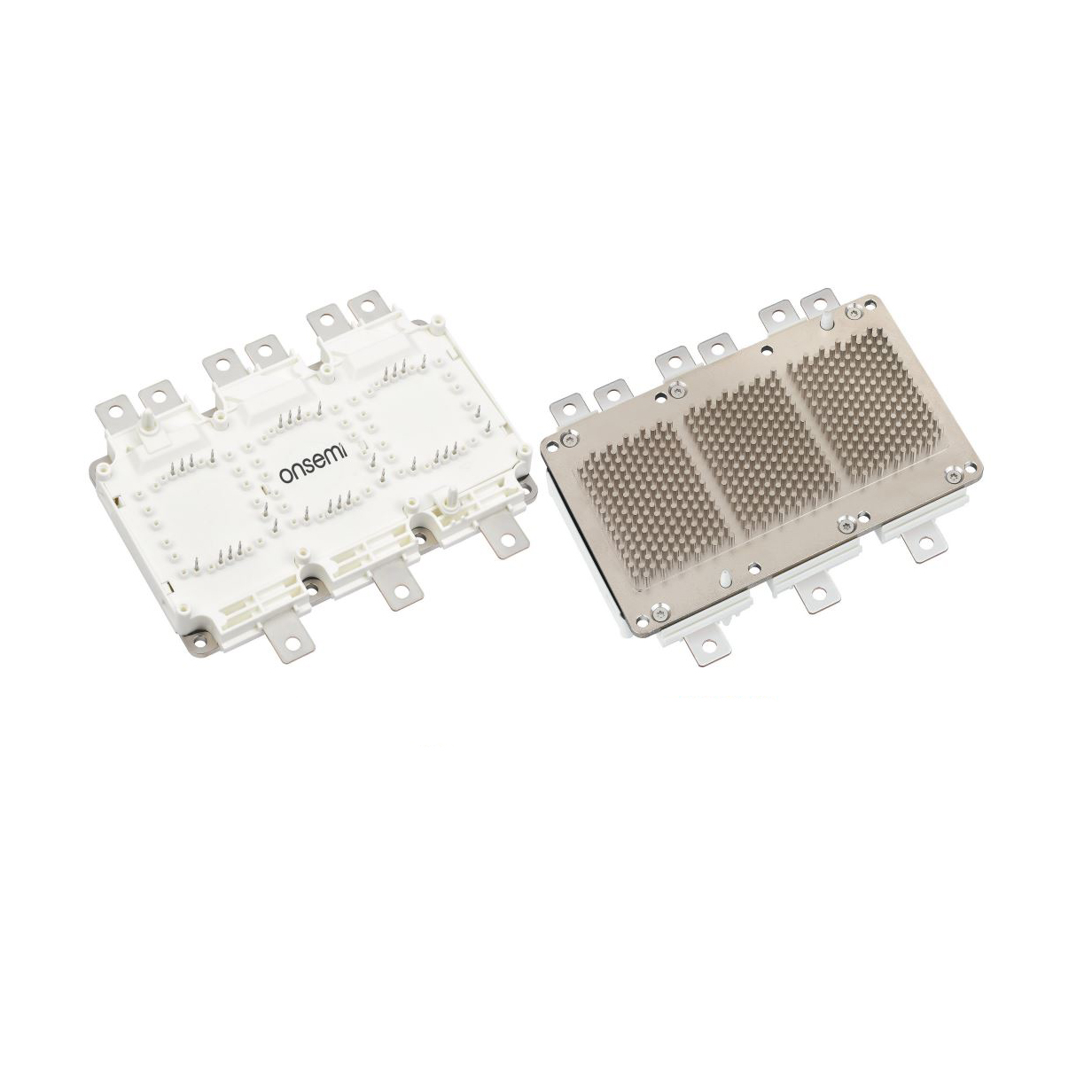

The NVXR17S90M2SPB is a Silicon Carbide (SiC) power module from onsemi's EliteSiC family, designed for traction inverter applications. It features a 6-pack configuration with a 900 V drain-to-source voltage and a continuous DC drain current of 620 A at 175°C junction temperature. The typical on-state resistance is 2.1 mΩ at 25°C and 2.3 mΩ at 175°C. Operating within a -40°C to +175°C range, the module utilizes direct cooling via an integrated pin-fin heatsink baseplate. Key electrical parameters include a gate threshold voltage of 2.7 V, total gate charge of 2.4 μC, and isolation voltage of 4200 V AC.
Feature Summary
- Direct cooling capability with an integrated copper pin-fin heatsink baseplate
- Automotive-grade silicon carbide MOSFET technology compliant with AQG324 standards
- High-reliability sintered die attach technology for thermal performance
- Six-pack topology with press-fit signal terminals for simplified assembly
Applications
- Hybrid electric vehicle traction inverters
- Electric vehicle traction inverters
Procurement Notes
Verify component authenticity by checking the marking diagram against the physical device. Confirm compliance with automotive reliability standards such as AQG324. Ensure that the SSDC39 package dimensions match the mechanical case outline specifications provided in the datasheet before integration into the design.
Selection Notes
Select this module for high-power density traction inverter designs requiring low switching losses and high thermal efficiency. Evaluate the thermal resistance characteristics against the specific cooling loop flow rates and pressure drop requirements. Consider the short-circuit energy withstand capabilities when designing protection circuits for the inverter system.
Part Context
This component belongs to the EliteSiC Power Module series manufactured by onsemi. It represents a generation of high-mobility compound semiconductor products aimed at improving efficiency and power density in electric vehicle applications compared to previous silicon-based solutions.
Replacement Considerations
Consult official documentation for verified substitute part numbers. Cross-reference electrical ratings and package dimensions carefully when considering alternative components.
