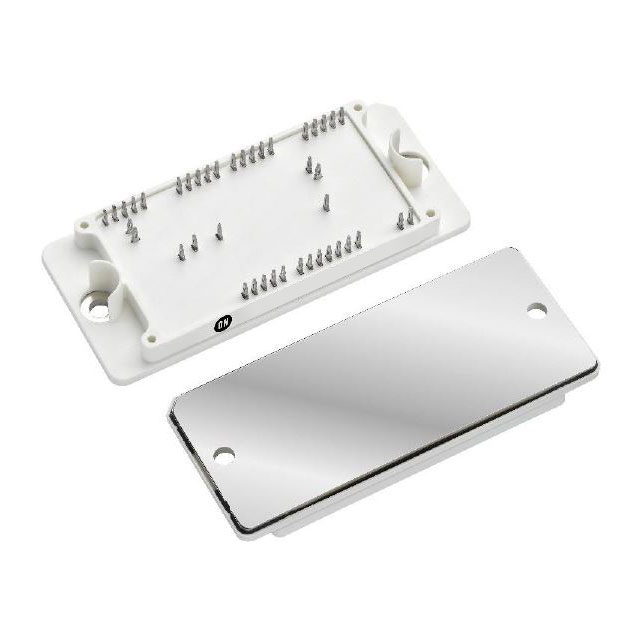

NXH350N100H4Q2F2P1G

$141.31

Description：IC PWR MODULE 1000V 350A PIM42
Series：-

SKU:53c7665e3699 Category: IGBT Modules Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR MODULE 1000V 350A PIM42
Series：-
Mfr：onsemi
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 375A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：42-PIM/Q2PACK (93x47)
Voltage - Collector Emitter Breakdown (Max)：1000 V
Current - Collector (Ic) (Max)：303 A
Power - Max：276 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：24.146 nF @ 20 V

Download product information

NXH350N100H4Q2F2P1G

Overview

The NXH350N100H4Q2F2P1G is a three-phase inverter IGBT module from onsemi, utilizing trench field-stop technology. It features a Q2PACK (93x47) surface-mount package with 42 terminals. The device supports a maximum collector-emitter voltage of 1000 V and offers continuous collector currents ranging from 298 A to 303 A at 25°C. Saturation voltages are specified between 1.63 V and 1.75 V. Power dissipation capabilities vary from 276 W to 731 W depending on operating conditions. The module operates within a junction temperature range of -40°C to +150°C or +175°C.

Feature Summary

Integrates trench field-stop IGBTs for optimized switching performance
Designed as a complete three-phase inverter configuration
Utilizes Q2PACK surface-mount packaging for compact assembly

Applications

Industrial motor drives
Uninterruptible power supplies
Solar inverters

Procurement Notes

Verify the specific suffix against official datasheets to confirm thermal characteristics and pinout compatibility. Confirm RoHS compliance status through manufacturer documentation before integration. Ensure ordering quantities align with standard factory packaging requirements to avoid handling variations.

Selection Notes

Select this module for applications requiring high current density in a surface-mount form factor. Evaluate thermal management solutions based on the specific power dissipation ratings provided in the electrical specifications. Verify gate drive voltage compatibility with the stated saturation voltage parameters.

Part Context

This component belongs to the NXH350 series of IGBT modules from onsemi. The series focuses on high-power density solutions using mixed Si/SiC technologies. It serves as a key element in modern power conversion systems requiring robust three-phase inversion capabilities.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout and thermal interface dimensions match existing board layouts when considering cross-model replacements.
