NXH450B100H4Q2F2PG

Overview

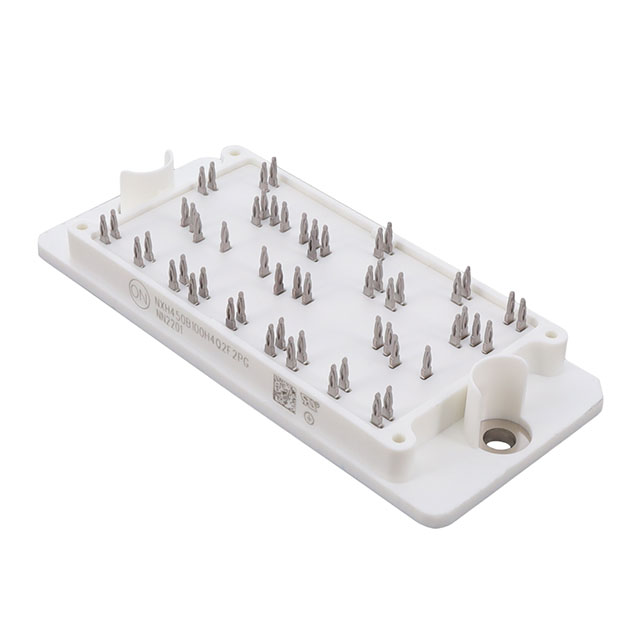

The NXH450B100H4Q2F2PG is a Field Stop (FS) III IGBT module manufactured by onsemi. It features mid-speed IGBTs with rugged anti-parallel diodes and utilizes press-fit pins for mounting. The device has a maximum collector-emitter voltage of 1000V and a continuous collector current of 75A at 25°C. It operates within a junction temperature range of -40°C to +150°C.

Feature Summary

• Integrates mid-speed FS III IGBT technology with rugged anti-parallel diodes
• Utilizes press-fit pin connections for secure mechanical attachment
• Designed for high-density power conversion applications

Applications

• Industrial motor drives
• Uninterruptible power supplies
• Solar inverters

Procurement Notes

Verify the specific suffix 'R' against official documentation, as it may indicate reel packaging or specific handling requirements distinct from standard tray configurations. Confirm end-of-life status and discontinuance notifications prior to finalizing procurement plans to ensure long-term supply chain stability.

Selection Notes

Select this component when a 1000V rating and 75A continuous current capacity are required. Ensure the design accommodates press-fit mounting techniques rather than traditional screw mounts. Verify thermal management capabilities align with the specified operating temperature limits and power dissipation characteristics.

Part Context

This module belongs to the NXH series of IGBT modules from onsemi. It represents the FS III generation, focusing on optimized switching performance and robustness. The Q2PACK form factor is common in this family, providing standardized dimensions for various power ratings within the same platform.

Replacement Considerations

Check for direct substitutes within the NXH450B100H4Q2F2 family. Verify pin compatibility and thermal interface requirements before replacing with other manufacturers' equivalents. Ensure electrical parameters match or exceed original specifications.
