P1AT-24MF-50G2W-3

Attenuators Overview

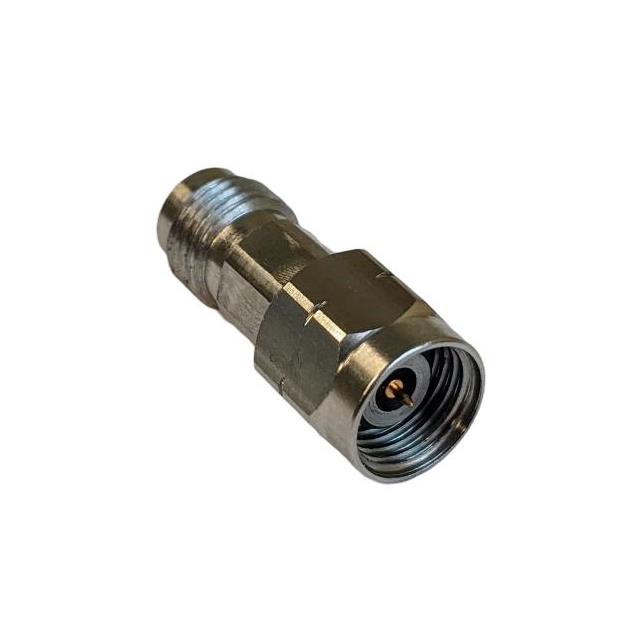

The P1AT-24MF-50G2W-3 is a fixed coaxial RF attenuator manufactured by P1dB Inc. It provides a nominal attenuation of 3 dB with a maximum power rating of 2 Watts. The device operates over a frequency range from DC to 50 GHz and maintains a characteristic impedance of 50 Ohms. It features a 2.4mm male connector on one end and a 2.4mm female connector on the other, designed for high-frequency signal management in demanding electronic applications.

Attenuators Feature Summary

• Provides precise 3 dB fixed attenuation for signal level control
• Operates across an ultra-wide bandwidth extending to 50 GHz
• Supports continuous power handling up to 2 Watts
• Utilizes robust 2.4mm coaxial interface connectors

Attenuators Applications

• High-frequency test and measurement instrumentation
• Microwave communication system signal conditioning
• RF circuit board integration requiring precise loss
• Aerospace and defense radar subsystems

Attenuators Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical tolerances and connector gender orientation. Ensure that the procurement source provides valid RoHS compliance certificates as indicated in public listings. Cross-reference the datasheet revision date to guarantee compatibility with current design specifications before finalizing purchase orders.

Attenuators Selection Notes

Select this component when a 3 dB loss is required within a 50 Ohm system operating up to 50 GHz. Confirm that the 2 Watt power rating aligns with the maximum expected signal levels in the application path. Evaluate the physical dimensions and mounting requirements against the available space constraints in the target assembly environment.

Attenuators Part Context

This model belongs to the P1AT series of precision coaxial attenuators from P1dB Inc. The series offers various attenuation values and power ratings while maintaining consistent 2.4mm connectivity. These components are engineered for stability and low VSWR in high-performance microwave environments.

Attenuators Replacement Considerations

Public documentation indicates that the P1AT-24MF-50G2W-20 serves as a replacement product for related models within the same family. Verify functional equivalence and connector compatibility before substituting.
