PDS188SS

Overview

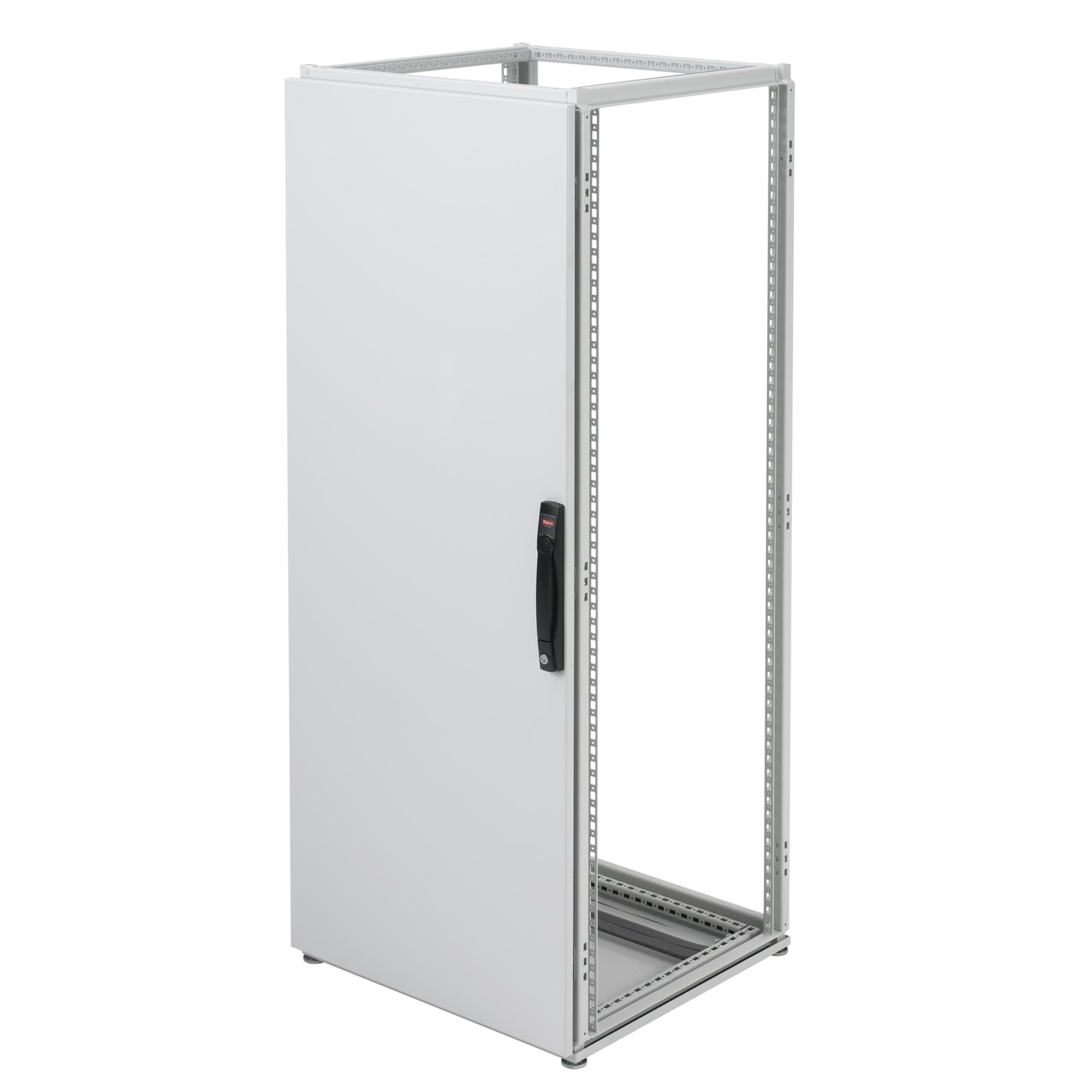

The PDS188SS is a solid door component manufactured by Hoffman Enclosures, Inc., designed for use with ProLine modular enclosure systems. It features dimensions of 68.46 inches in height and 31.18 inches in width, corresponding to an 1800 mm x 800 mm frame size. The unit utilizes a flush bezel latch operating a three-point latching system and incorporates hidden hinges capable of a 130-degree swing angle.

Feature Summary

• Flush bezel latch mechanism enabling secure three-point latching operation
• Hidden hinge design allowing for a 130-degree swing angle
• Solid construction intended to close open sides or serve as a primary enclosure entry

Applications

• Installation on ProLine 1800 mm modular enclosure frames
• Replacement of damaged or worn doors on existing industrial enclosures
• Construction of new ready-to-populate panel enclosures

Procurement Notes

Verify that the target enclosure frame matches the 1800 mm x 800 mm specification required for this door model. Confirm compatibility with the specific ProLine series being utilized. Ensure mounting hardware requirements are met, as some configurations may require separate acquisition of semi-flush screws or alignment hangers depending on the frame assembly.

Selection Notes

Select this part when a solid, non-ventilated door surface is required for environmental protection or aesthetic uniformity within a ProLine system. Consider the 130-degree hinge swing for spatial clearance constraints during maintenance access. Verify that the three-point latching system aligns with the security and sealing requirements of the installation environment compared to standard two-point alternatives.

Part Context

This component belongs to the nVent Hoffman ProLine family of modular enclosure solutions. It functions as a structural closure element for standardized steel frames, allowing for customizable assembly of industrial control cabinets. The product supports the creation of integrated electrical housing units where standardized dimensions facilitate rapid deployment and future expansion through modular joining techniques.

Replacement Considerations

• PDS188
