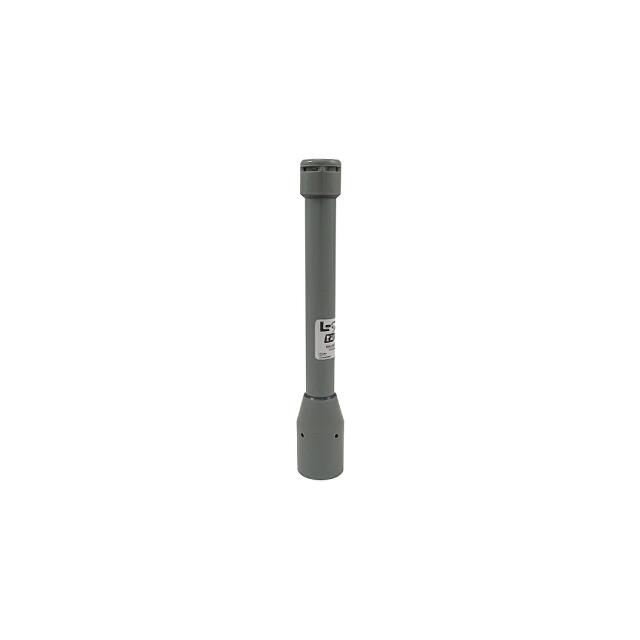

PE51OM1024 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.4 GHz 4 dBi Omnidirectional An. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for PE51OM1024
- Description：2.4 GHz 4 dBi Omnidirectional An
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- RF Family/Standard：General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：4dBi
- Features：-
- Termination：N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：8.100" (205.74mm)
- Applications：802.11b/g/n, ISM
- Power - Max：100 W
Antennas RF datasheet and documents for PE51OM1024
Antennas RF Overview
The PE51OM1024 is an RF antenna manufactured by Pasternack, designed for operation within the 802.11b/g/n ISM frequency bands. It features a magnetic base mount configuration and utilizes an N-type male connector for interface connectivity. The component is categorized under RF antennas and is intended for wireless communication applications requiring omnidirectional signal coverage.
Antennas RF Feature Summary
- Supports 802.11b/g/n ISM band operations
- Integrates a magnetic mounting system for installation flexibility
- Utilizes an N-type male connector interface
Antennas RF Applications
- Wireless LAN infrastructure deployment
- ISM band communication systems
- Omnidirectional signal coverage setups
Antennas RF Procurement Notes
Verify availability through authorized distributors as stock status may vary. Confirm that the N-type male connector specification matches the receiving equipment interface requirements. Ensure the magnetic mounting capability aligns with the physical installation environment constraints. Review the manufacturer datasheet for complete electrical performance characteristics before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when 802.11b/g/n ISM band compatibility is required alongside magnetic mounting convenience. The N-type male connector dictates the necessary cabling or adapter specifications for system integration. Consider the omnidirectional radiation pattern suitability for the specific coverage area requirements of the target application environment.
Antennas RF Part Context
This component belongs to the Pasternack RF antenna product line, specifically engineered for industrial and commercial wireless applications. It serves as a critical interface element in radio frequency transmission systems, providing reliable signal propagation within designated ISM frequency ranges without requiring complex structural mounting hardware.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence regarding connector type, frequency range, and mounting style if considering alternative components from other manufacturers.
