PE7091-6

Attenuators Overview

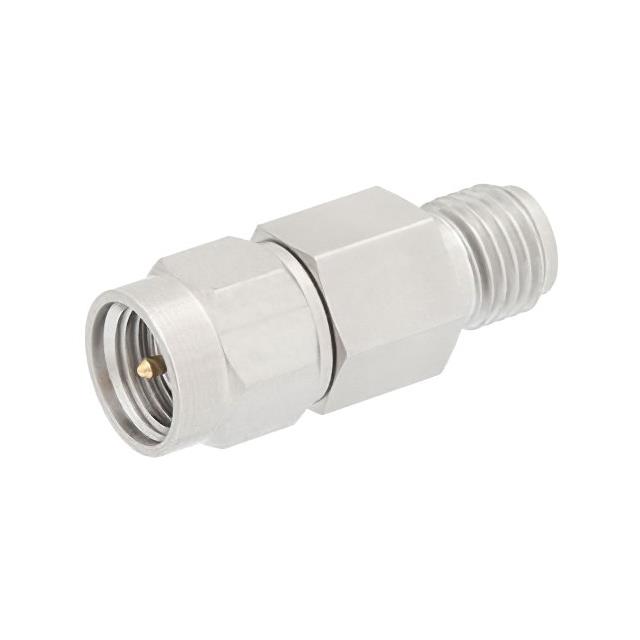

The Pasternack PE7091-6 is a fixed RF attenuator designed for signal reduction in microwave systems. It provides a precise attenuation value of 6 dB across a frequency range of 0 Hz to 6 GHz. The component features SMA male to SMA female connectors and maintains a standard impedance of 50 Ohms. It is rated to handle up to 2 Watts of power at the stated attenuation level. The unit utilizes a passivated stainless steel body for durability.

Attenuators Feature Summary

• Provides fixed 6 dB signal attenuation
• Operates from DC to 6 GHz
• SMA male to SMA female interface
• Passivated stainless steel construction

Attenuators Applications

• Microwave test and measurement setups
• RF signal path power reduction
• Telecommunications equipment integration
• Instrumentation system calibration

Attenuators Procurement Notes

Verify the specific connector gender configuration matches the design requirements, as SMA variants exist in multiple combinations. Confirm that the 2-watt power rating aligns with the maximum expected signal levels in the application circuit. Ensure the operating frequency does not exceed the 6 GHz upper limit specified for this model to maintain performance integrity.

Attenuators Selection Notes

Select this component when a fixed 6 dB reduction is required within the 0 to 6 GHz bandwidth. Consider the 50 Ohm impedance match for compatibility with standard RF systems. Evaluate the passivated stainless steel housing for environmental resistance if used in harsh conditions. Compare against variable attenuators if adjustable attenuation is needed instead of a fixed value.

Attenuators Part Context

This part belongs to the category of fixed attenuators manufactured by Pasternack. It serves as a passive component for controlling signal amplitude without introducing significant distortion. The device complements other RF interconnect solutions by providing stable attenuation characteristics essential for accurate signal processing and system testing environments.

Attenuators Replacement Considerations

The PE7092-6 is a confirmed substitute offering identical 6 dB attenuation and SMA male-to-female configuration. Both parts share the same 50 Ohm impedance and 2-watt power rating. Verify that the replacement part meets the same 6 GHz frequency specification before implementation.
