PEANLP1008

Antennas RF Overview

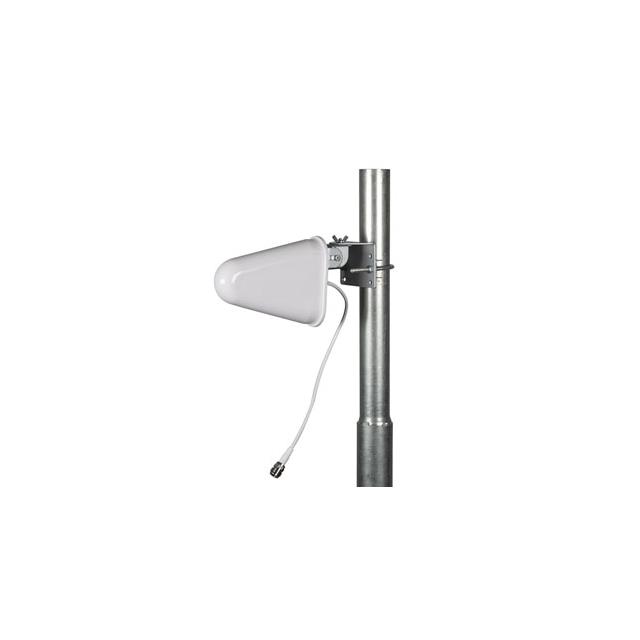

The PEANLP1008 is a high-gain log periodic antenna manufactured by Pasternack, designed for operation within the 1920 MHz to 2170 MHz frequency range. It provides a nominal gain of 10 dBi and features vertical polarization. The component utilizes an N-type female connector for interfacing and maintains a maximum voltage standing wave ratio (VSWR) of 1.5:1 across its operational bandwidth.

Antennas RF Feature Summary

• Log periodic design structure for wideband performance
• Vertical polarization configuration
• High gain output capability

Antennas RF Applications

• Wireless communication base station installations
• Point-to-point microwave link systems
• RF signal distribution networks

Antennas RF Procurement Notes

Verify the specific manufacturer datasheet for mechanical dimensions and environmental ratings prior to integration. Confirm that the N-type female interface aligns with existing cabling infrastructure. Ensure the operating frequency band matches the intended application requirements to guarantee optimal signal integrity and system performance.

Antennas RF Selection Notes

Select this model when a directional, high-gain solution is required for the 1920-2170 MHz spectrum. The vertical polarization suits applications where tower-mounted orientation favors vertical alignment. Consider the 10 dBi gain level relative to link budget calculations to ensure adequate coverage distance and signal strength at the receiver end.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of RF antennas, specifically targeting wireless infrastructure needs. Log periodic antennas in this category are engineered to provide consistent gain and impedance characteristics over a broad frequency range, distinguishing them from narrowband dipole or monopole alternatives.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
