PEC16DAEN

Headers, Male Pins Overview

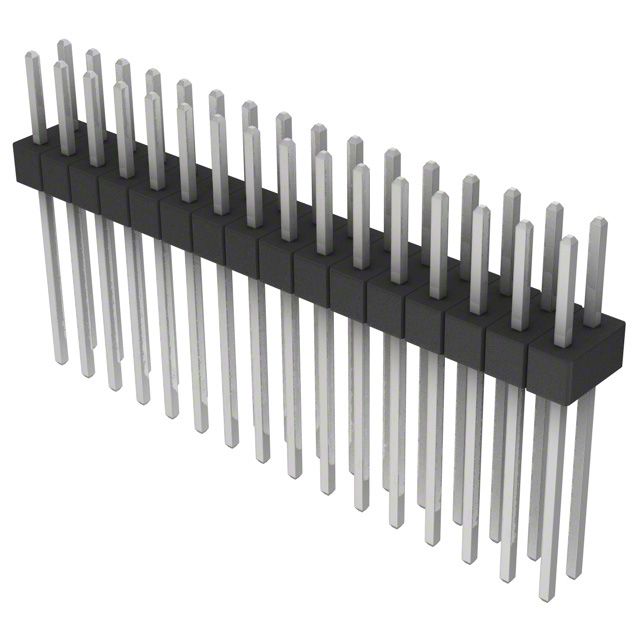

The PEC16DAEN is a male header connector manufactured by Sullins Connector Solutions. It features a dual-row configuration with 16 positions and a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes solder termination and push-pull locking. The contacts are tin-plated with a thickness of 100µin (2.54µm). Key dimensions include a contact mating length of 0.230 inches, a terminal length of 0.520 inches, and an overall contact length of 0.850 inches. The insulation height is 0.100 inches.

Headers, Male Pins Feature Summary

• Dual-row unshrouded breakaway header design
• Through-hole solder termination with push-pull locking mechanism
• Tin-plated square male pin contacts

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm mechanical specifications and material composition. Ensure compatibility with mating connectors regarding pitch and row spacing. Confirm that the through-hole mounting style aligns with the target PCB layout requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a dual-row male header with a standard 0.100-inch pitch is required. The push-pull locking feature provides secure retention during board insertion. Consider the unshrouded design for applications where side clearance is available. Verify that the tin plating meets the environmental and conductivity requirements of the specific application.

Headers, Male Pins Part Context

This component belongs to the PEC series of rectangular connectors from Sullins Connector Solutions. The series offers various configurations for industrial and commercial applications. The PEC16DAEN specifically represents a straight, dual-sided variant within this family, designed for reliable signal transmission in standard electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 0.100-inch pitch, 16-position count, dual-row layout, and through-hole termination method. Verify that any alternative part maintains identical mechanical dimensions and locking mechanisms to ensure proper fit and function.
