PTFC270101M-V1-R1K

Overview

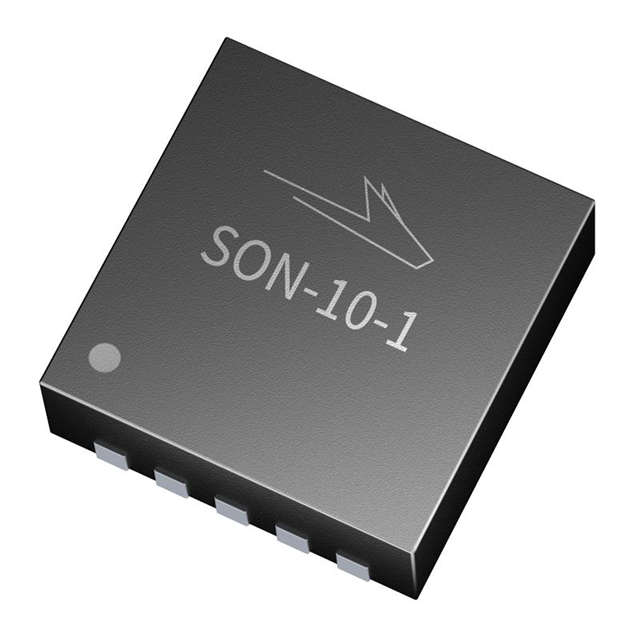

The PTFC270101M-V1-R1K is an RF MOSFET utilizing LDMOS technology, manufactured by MACOM Technology Solutions. It operates at a frequency of 2.17GHz with a gain of 20.5dB and delivers an output power of 2.4W. The device is rated for a test voltage of 28V and has a maximum rated voltage of 65V. It draws a test current of 120 mA. The component is housed in a PG-SON-10 package (10-LDFN with exposed pad) designed for surface mount installation.

Feature Summary

• LDMOS construction for high-performance RF applications
• Surface mount PG-SON-10 package design
• RoHS3 compliant manufacturing

Applications

• RF power amplification
• Wireless communication systems
• Microwave circuitry

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, as variations such as CT or DKR indicate different reel types. Confirm RoHS3 compliance status if required by project specifications. Check for Product Change Notices regarding assembly sites or material updates before finalizing procurement orders to ensure supply chain consistency.

Selection Notes

Select this component when a 2.17GHz operating frequency and 2.4W output power are required. Ensure the 28V test voltage aligns with the system bias requirements. The PG-SON-10 package must be compatible with the PCB footprint and thermal management strategy. Verify that the LDMOS technology meets the linearity and efficiency needs of the specific RF application.

Part Context

This part belongs to the PTFC270101 series from MACOM Technology Solutions. It is classified under discrete semiconductor products, specifically RF FETs and MOSFETs. The component is currently listed as active and in production. It serves as a specialized radio frequency transistor designed for medium-power amplification tasks within the microwave spectrum.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
