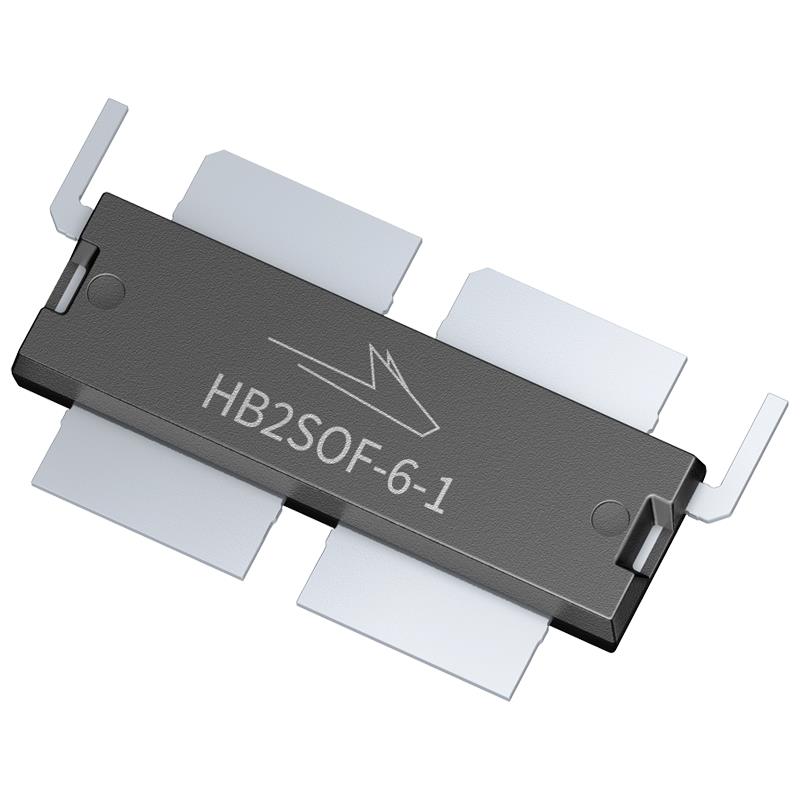

PTRA095908NB-V1-R2

$91.38

Description：RF MOSFET LDMOS 6HB2SOF
Series：-

SKU:d37fb24ce3b1 Category: RF FETs, MOSFETs Brand: MACOM Technology Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS 6HB2SOF
Series：-
Mfr：MACOM Technology Solutions
Package：Tape & Reel (TR)
Technology：LDMOS
Frequency：925MHz ~ 960MHz
Gain：17.5dB
Voltage - Test：-
Current Rating (Amps)：-
Noise Figure：-
Current - Test：-
Power - Output：-
Voltage - Rated：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：HB2SOF-6-1
Supplier Device Package：PG-HB2SOF-6-1
Configuration：-

Download product information

PTRA095908NB-V1-R2

Overview

The PTRA095908NB-V1-R2 is an RF MOSFET LDMOS transistor manufactured by MACOM Technology Solutions. It utilizes a 6HB2SOF package and operates within the radio frequency spectrum. The device features broadband internal input and output matching capabilities, supporting asymmetric Doherty amplifier designs. Key performance metrics include a typical P1dB of 250 W for the main path and 400 W for the peak path. This component is designed for high-power RF applications requiring robust linearity and efficiency.

Feature Summary

Broadband internal input and output matching
Asymmetric Doherty design architecture
High power linear operation

Applications

Base station power amplifiers
Wireless infrastructure systems
Doherty amplifier modules

Procurement Notes

Verify the specific suffix V1 against the manufacturer's latest datasheet to ensure compatibility with current assembly sites and process technologies. Confirm RoHS3 compliance status and MSL rating prior to integration into production lines. Cross-reference the part number with official PCN documents to validate any recent manufacturing site additions or material changes.

Selection Notes

Select this component for applications requiring high output power in asymmetric Doherty configurations. Ensure the system design supports the required biasing conditions for both main and peak paths. Verify that the thermal management solution accommodates the power dissipation characteristics inherent to LDMOS technology in the specified package.

Part Context

This part belongs to MACOM's portfolio of RF power transistors designed for telecommunications infrastructure. It leverages advanced GaN or mHEMT process technologies often showcased at industry events like European Microwave Week. The product is intended for high-performance signal generation in modern wireless networks.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult MACOM directly for qualified alternatives or newer revisions.
