Product Detailed Parameters
- Description：RF MOSFET LDMOS 48V 6HB2SOF
- Series：-
- Mfr：MACOM Technology Solutions
- Package：Tape & Reel (TR)
- Technology：LDMOS (Dual)
- Frequency：730MHz ~ 960MHz
- Gain：18.4dB
- Voltage - Test：48 V
- Current Rating (Amps)：10µA
- Noise Figure：-
- Current - Test：450 mA
- Power - Output：800W
- Voltage - Rated：105 V
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：HB2SOF-6-1
- Supplier Device Package：PG-HB2SOF-6-1
- Configuration：-
Download product information
Overview

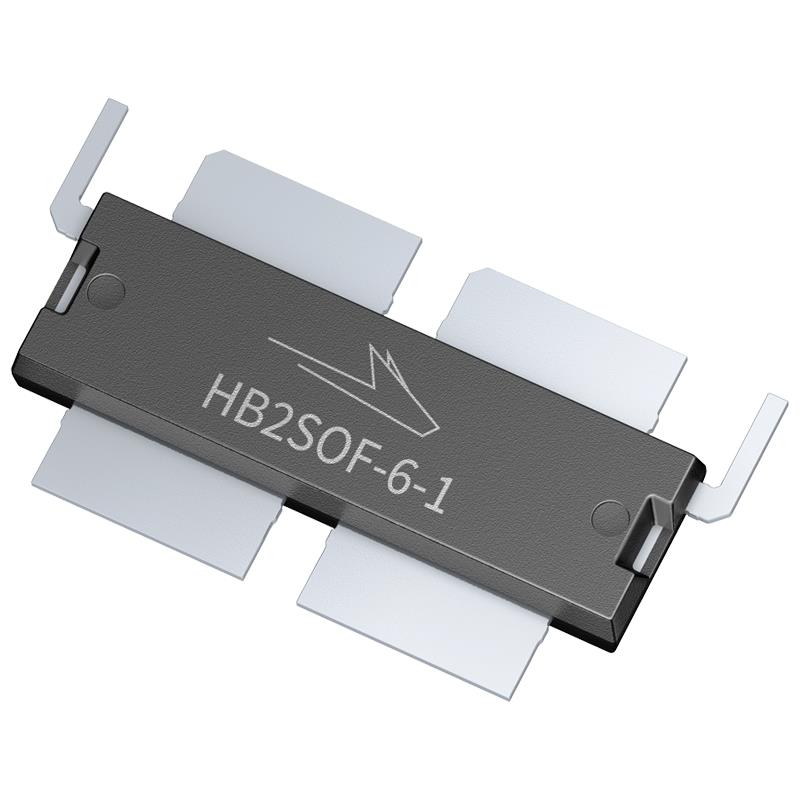

The PTRA097058NB-V1-R2 is a silicon LDMOS RF power transistor manufactured by MACOM Technology Solutions. It operates within the 730-960 MHz frequency range and utilizes a TO-288 package. The device features broadband internal input and output matching with an asymmetric design architecture. Key performance metrics include a typical P1dB of 250 W for the main configuration and 500 W for the peak configuration, supporting high-power applications in demanding RF environments.
Feature Summary
- Broadband internal input and output matching for simplified circuit integration
- Asymmetric design architecture optimizing signal handling
- Silicon LDMOS construction ensuring robust RF performance
Applications
- High-power RF amplification systems
- Broadcast transmission equipment
- Defense radar systems
Procurement Notes
Verify component authenticity through authorized channels due to lifecycle status. Confirm package integrity upon receipt as the TO-288 housing requires careful handling. Cross-reference datasheet revisions to ensure compatibility with existing system designs. Validate electrical parameters against current specifications before integration into production workflows.
Selection Notes
Evaluate thermal management requirements given the high power dissipation characteristics. Ensure biasing circuits support the specified voltage levels for optimal operation. Consider the asymmetric design implications for impedance matching networks. Verify frequency coverage aligns with specific operational bandwidth needs.
Part Context
This component belongs to MACOM's portfolio of high-performance semiconductor products designed for telecommunications, industrial, and defense sectors. It represents silicon LDMOS technology optimized for RF applications requiring significant power output within specific frequency bands.
Replacement Considerations
Consult official documentation for direct substitutes. Verify pinout compatibility and electrical parameter equivalence when considering alternative components from other manufacturers.
