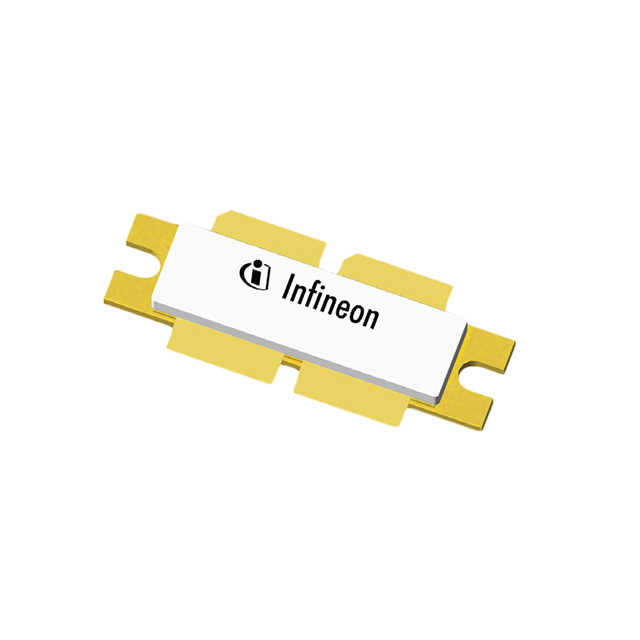

PTVA101K02EVV1XWSA1

Description：RF MOSFET LDMOS H-36275-4
Series：-

SKU:bfd104a0d08e Category: RF FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS H-36275-4
Series：-
Mfr：Infineon Technologies
Package：Tray
Technology：LDMOS
Frequency：1.03GHz ~ 1.09GHz
Gain：17.5dB
Voltage - Test：-
Current Rating (Amps)：-
Noise Figure：-
Current - Test：-
Power - Output：950W
Voltage - Rated：50 V
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Package / Case：H-36275-4
Supplier Device Package：H-36275-4
Configuration：Dual

Download product information

PTVA101K02EVV1XWSA1

Overview

The PTVA101K02EVV1XWSA1 is a thermally-enhanced high-power RF LDMOS FET designed for power amplifier applications in the 1030 MHz and 1090 MHz frequency bands. It delivers up to 1000 W output power with a 50 V drain supply. The device features broadband input matching, high gain, and integrated ESD protection. Manufactured using Infineon's advanced LDMOS process, it offers excellent thermal performance and superior reliability within its bolt-down flange package.

Feature Summary

Broadband input matching capability
High gain and efficiency performance
Integrated electrostatic discharge (ESD) protection
Low thermal resistance design

Applications

Power amplifier applications in the 1030 MHz band
Power amplifier applications in the 1090 MHz band
MODE-S pulse condition environments

Procurement Notes

Verify the specific ordering code PTVA101K02EVV1XWSA1 against official Infineon documentation to confirm the H-36275-4 bolt-down tray packaging configuration. Ensure compatibility with the required test fixtures for accurate performance validation during integration.

Selection Notes

Select this component for high-power RF applications requiring operation at 1030 MHz or 1090 MHz. Consider the 50 V drain voltage requirement and the necessity for a bolt-down mounting solution to manage thermal dissipation effectively under high load conditions.

Part Context

This part belongs to the PTVA101K02EV series of thermally-enhanced high-power RF LDMOS FETs. It is manufactured by Infineon Technologies and utilizes their advanced LDMOS process technology to ensure robust performance and reliability in demanding radio frequency power amplifier environments.

Replacement Considerations

PTVA101K02EVV1R250XTMA1 is a confirmed substitute offering identical electrical characteristics but supplied in tape and reel packaging instead of trays.
