QBL8IW15C-NW

LED Indication - Discrete Overview

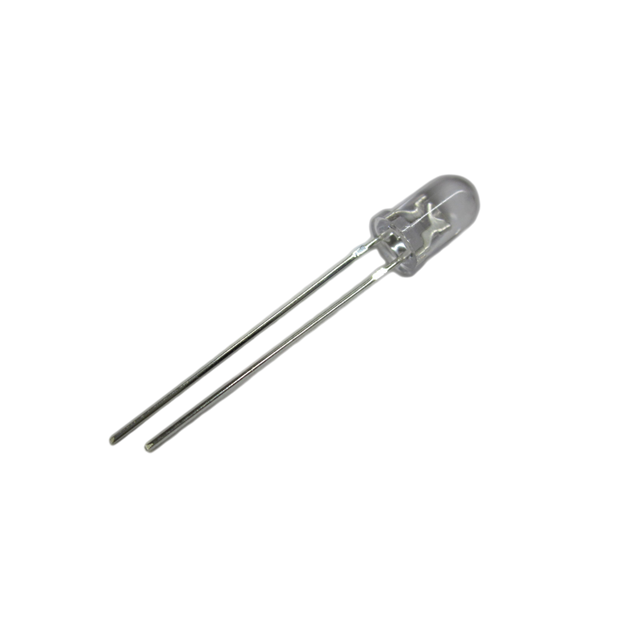

The QBL8IW15C-NW is a white light-emitting diode from the QT Brightek (QTB) product line, designed for discrete indication applications. It utilizes a T-1 3/4 radial leaded package configuration with a clear lens to provide focused illumination. The component operates at a forward voltage of 3.1V and is classified as an active, in-stock device suitable for through-hole mounting processes.

LED Indication - Discrete Feature Summary

• Clear lens design for directional light output
• Radial leaded package for through-hole integration
• White color emission for standard indication tasks

LED Indication - Discrete Applications

• Panel status indicators
• Power supply signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm optical characteristics. Ensure the procurement channel provides valid traceability for electronic components. Confirm that the received parts match the specified T-1 3/4 form factor and electrical ratings before implementation into production workflows.

LED Indication - Discrete Selection Notes

Select this component when a through-hole LED with a clear lens is required for high-intensity visual signaling. The T-1 3/4 package offers a balance between beam focus and mechanical stability. Consider the 3.1V forward voltage drop during circuit design to ensure appropriate current limiting resistor values are utilized for reliable operation.

LED Indication - Discrete Part Context

This part belongs to the QT Brightek discrete LED portfolio, which focuses on visible light sources for industrial and consumer electronics. The QBL8 series typically encompasses various lens styles and colors within the T-1 3/4 footprint, providing designers with standardized options for panel mounting and indicator applications.

LED Indication - Discrete Replacement Considerations

Compatible substitutes include other T-1 3/4 white LEDs with clear lenses, such as the QBL8IW15C-WW or generic equivalents from manufacturers like Kingbright or Everlight, provided they meet the same mechanical and electrical specifications.
