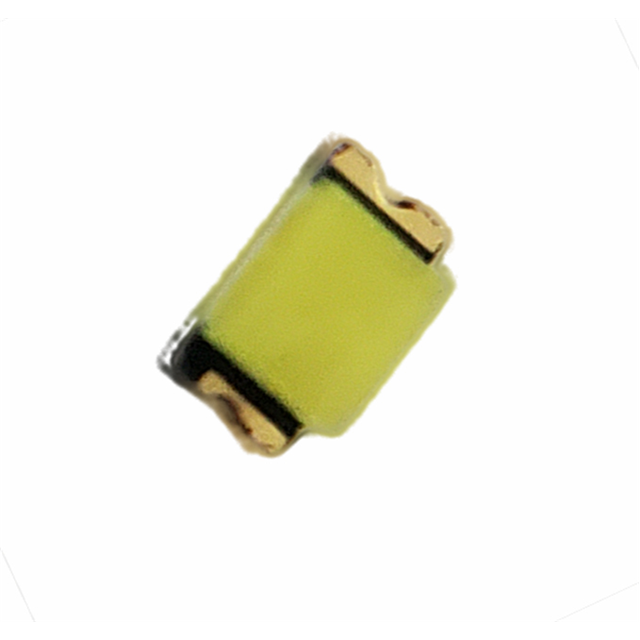

QBLP601-IW-2897

$0.23

Description：LED WHITE DIFFUSED 0603 SMD
Series：QBLP601
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:77d894de912c Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP601-IW-2897 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is LED WHITE DIFFUSED 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP601-IW-2897

Description：LED WHITE DIFFUSED 0603 SMD
Series：QBLP601
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：900mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)：3V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP601-IW-2897

QBLP601-IW-2897

LED Indication - Discrete Overview

The QBLP601-IW-2897 is a white light-emitting diode from the QBLP601 series, manufactured by QT Brightek. It features a standard configuration with a diffused yellow lens and is housed in a 0603 (1608 metric) surface-mount package measuring 1.60mm x 0.80mm x 0.70mm maximum height. The component operates with a typical forward voltage of 3V at a test current of 20mA. It provides a luminous intensity of 900mcd and offers a wide viewing angle of 140 degrees. The device complies with RoHS3 standards and has a Moisture Sensitivity Level of 3.

LED Indication - Discrete Feature Summary

Diffused lens design for uniform light distribution
Wide 140-degree viewing angle
Standard surface-mount construction

LED Indication - Discrete Applications

General indicator lighting
Backlighting applications
Electronic status indication

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct packaging format, such as tape and reel or cut tape, matches assembly requirements. Confirm that the 0603 footprint aligns with the PCB layout. Check for RoHS3 compliance documentation if required by project specifications. Ensure storage conditions respect the MSL 3 rating to prevent moisture damage before reflow soldering.

LED Indication - Discrete Selection Notes

Select this component when a compact white LED with high brightness is needed for space-constrained designs. The 0603 package allows for dense placement on printed circuit boards. Consider the 3V forward voltage drop for power supply calculations. The diffused lens is suitable where glare reduction is necessary compared to clear lens alternatives.

LED Indication - Discrete Part Context

This part belongs to the QBLP601 series of surface-mount LEDs. The series includes various colors and lens types in the same 0603 form factor. This specific model focuses on white light output with diffusion properties. It is designed for automated pick-and-place manufacturing processes due to its standard SMD packaging.
