QBLP601-RIB

LED Indication - Discrete Overview

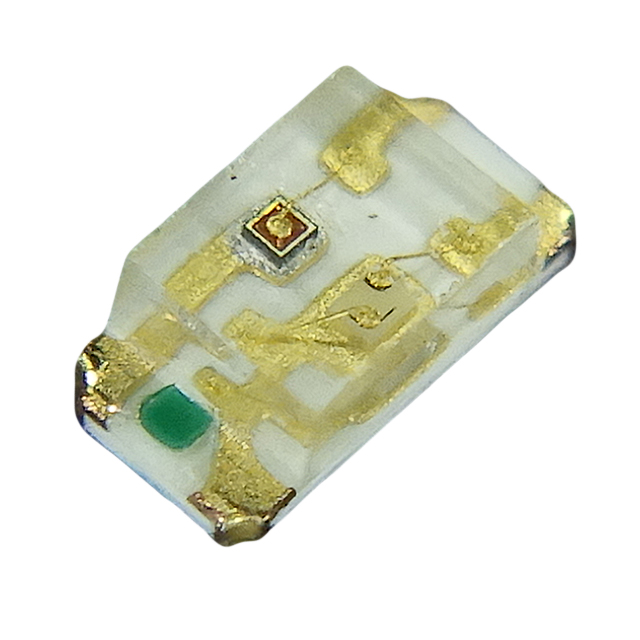

The QBLP601-RIB is a dual-chip surface-mount LED from the QBLP601 series, manufactured by QT Brightek. It integrates blue and red emitters within a compact 0603 (1608 metric) package measuring 1.60mm in length, 0.80mm in width, and 0.55mm to 0.60mm in height. The device features a clear lens style with a rectangular shape and flat top, providing a typical viewing angle of 140 degrees. Electrical characteristics include a forward voltage of approximately 2V for the red chip and 3.2V for the blue chip, tested at a current of 20mA per chip. The component is supplied in tape and reel packaging.

LED Indication - Discrete Feature Summary

• Dual-chip architecture integrating blue and red LEDs within a single 0603 SMD footprint
• Clear lens design with rectangular flat-top geometry for direct visibility
• Wide 140-degree viewing angle suitable for broad illumination requirements
• RoHS compliant construction supporting environmentally conscious manufacturing

LED Indication - Discrete Applications

• Status indication on mobile devices
• Indicator lights for wearable technology
• Backlight applications requiring space-constrained solutions

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official datasheets to confirm color combination and binning. Ensure compatibility with standard reflow soldering profiles for 0603 packages. Confirm moisture sensitivity level (MSL 3) handling requirements during storage and assembly. Cross-reference manufacturer part numbers with distributor codes to avoid ordering errors.

LED Indication - Discrete Selection Notes

Select this component when board space is limited but distinct multi-color signaling is required. The 0603 form factor allows for high-density placement compared to larger discrete LEDs. Consider the combined forward voltage requirements for circuit design, as the red and blue chips have different voltage drops. Verify that the clear lens transparency meets the optical visibility needs of the final enclosure.

LED Indication - Discrete Part Context

This component belongs to the QBLP601 series of dual-chip LEDs designed for high-density applications. The series utilizes small footprints to accommodate modern miniaturized electronics. Similar parts in the family include variations such as QBLP601-RY and QBLP601-YIG, which offer different color combinations while maintaining the same physical dimensions and mounting characteristics.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 0603 package size, dual-chip configuration, and electrical parameters. Verify that alternative components maintain the 140-degree viewing angle and similar luminous intensity ratings. Ensure the replacement supports the same lead-free soldering processes and RoHS compliance standards.
