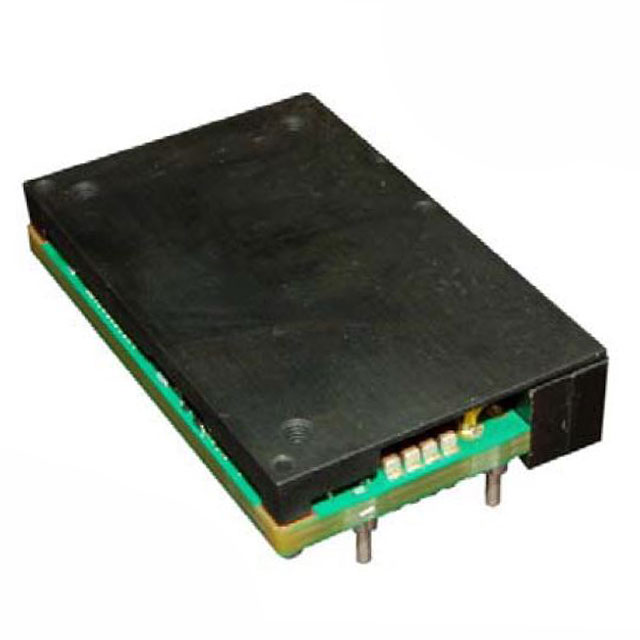

QBVS050A0B61-HZ

QBVS050A0B61-HZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 12V 600W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QBVS050A0B61-HZ

• Description：DC DC CONVERTER 12V 600W
• Series：Barracuda™ QBVS050A0B (600W)
• Mfr：OmniOn Power™
• Package：Box
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：52V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：600 W
• Voltage - Isolation：750 V
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-20°C ~ 85°C
• Efficiency：97.10%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/4 Brick
• Size / Dimension：2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for QBVS050A0B61-HZ
