Product Detailed Parameters

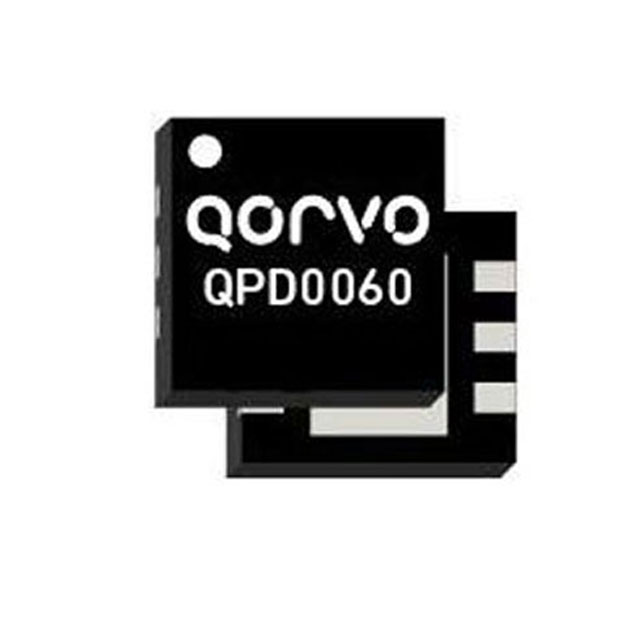

- Description：DC-3.6 GHZ,90W, 48V GAN RF PWR T
- Series：-
- Mfr：Qorvo
- Package：Tape & Reel (TR)
- Technology：GaN
- Frequency：1.8GHz ~ 3.6GHz
- Gain：21.5dB
- Voltage - Test：48 V
- Current Rating (Amps)：-
- Noise Figure：-
- Current - Test：130 mA
- Power - Output：90W
- Voltage - Rated：165 V
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：6-VDFN Exposed Pad
- Supplier Device Package：6-DFN (7.2x6.6)
- Configuration：N-Channel
Download product information
Overview
The QPD0060SR is a gallium nitride (GaN) radio frequency power amplifier from the Qorvo QPD0060 series. It operates within a frequency range of 0 Hz to 2.7 GHz and delivers an output power of 100W. The device provides a gain of 25 dB while functioning at a supply voltage of 48 V. Designed for surface mount applications, it is housed in a compact DFN-6 package. This component utilizes GaN technology to achieve high efficiency and power density suitable for demanding RF environments.
Feature Summary
- Utilizes Gallium Nitride (GaN) technology for enhanced performance
- Delivers high output power of 100W
- Operates across a broad frequency spectrum up to 2.7 GHz
- Features a compact DFN-6 surface mount package
Applications
- Base station infrastructure
- Point-to-point microwave links
- Electronic warfare systems
Procurement Notes
Verify the specific suffix against official documentation to confirm pinout and electrical characteristics match design requirements. Confirm moisture sensitivity level handling procedures during assembly. Ensure compatibility with the intended thermal management solution given the high power dissipation. Validate that the 48V supply rail aligns with system specifications before integration.
Selection Notes
Select this component when high linearity and power efficiency are required in the sub-3GHz band. The DFN-6 package suits designs needing minimal footprint. Consider thermal resistance capabilities if operating near maximum power levels. Verify that the 25 dB gain meets system link budget requirements without excessive external amplification stages.
Part Context
The QPD0060SR belongs to the QPD0060 family of GaN power amplifiers. This series is engineered for robust performance in wireless communication infrastructure. The SR suffix typically denotes reel packaging for automated surface mount processing. It represents a shift towards higher power density solutions using wide-bandgap semiconductor materials.
FAQ
What is the operating supply voltage for the QPD0060SR?
The device operates at a supply voltage of 48 V.
Does the QPD0060SR support frequencies above 2.7 GHz?
No, the specified operating frequency range is 0 Hz to 2.7 GHz.
What type of package does the QPD0060SR use?
It uses a DFN-6 surface mount package.
