QPD2160D

$23.14

Description：1.60MM PWR PHEMT
Series：-

SKU:38adfc182e1f Category: RF FETs, MOSFETs Brand: Qorvo

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：1.60MM PWR PHEMT
Series：-
Mfr：Qorvo
Package：Tray
Technology：GaAs pHEMT
Frequency：0Hz ~ 20GHz
Gain：10.4dB
Voltage - Test：8 V
Current Rating (Amps)：517mA
Noise Figure：1dB
Current - Test：128 mA
Power - Output：-
Voltage - Rated：12 V
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：Die
Supplier Device Package：Die
Configuration：-

Download product information

QPD2160D

Overview

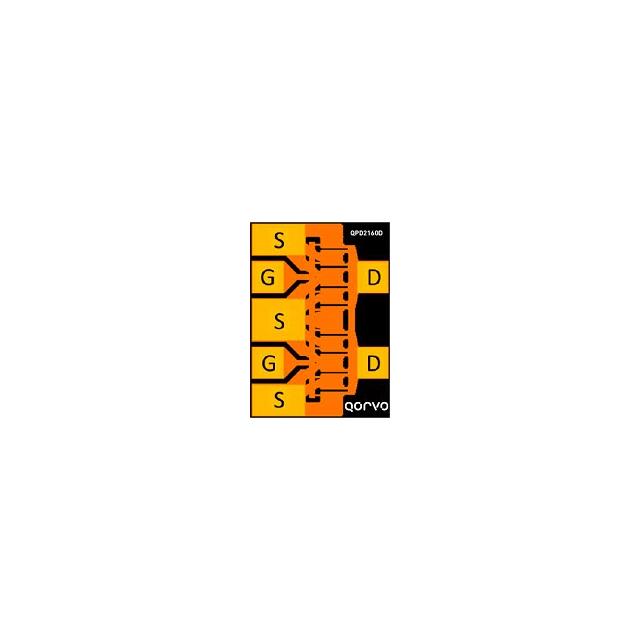

The Qorvo QPD2160D is a 1600µm GaAs pHEMT die designed for high-power RF applications. It delivers an output power of 32.5 dBm at the 1dB compression point (P1dB). The device provides a gain of 10.4 dB and achieves a power-added efficiency (PAE) of 63% at P1dB. Manufactured using Qorvo's standard 0.25µm power pHEMT process, this component integrates advanced semiconductor technology to support demanding signal amplification requirements in communication systems.

Feature Summary

Utilizes Qorvo's verified standard 0.25µm power pHEMT manufacturing process for reliability
Engineered as a 1600µm GaAs pHEMT die for high-power density performance
Optimized for high power-added efficiency in RF power amplification stages

Applications

High-power RF power amplification modules
Communication system transmitter chains
Military and aerospace radar systems

Part Context

The QPD2160D belongs to Qorvo's discrete GaAs pHEMT product family, which includes variants with different gate widths such as the QPD2060D, QPD2080D, and QPD2120D. These components share a common technological foundation based on the 0.25µm process node but are differentiated by their physical dimensions and resulting power capabilities. This specific model represents the higher-power end of that particular series lineup.
