R5F563TEAGFH#V1

Microcontrollers Overview

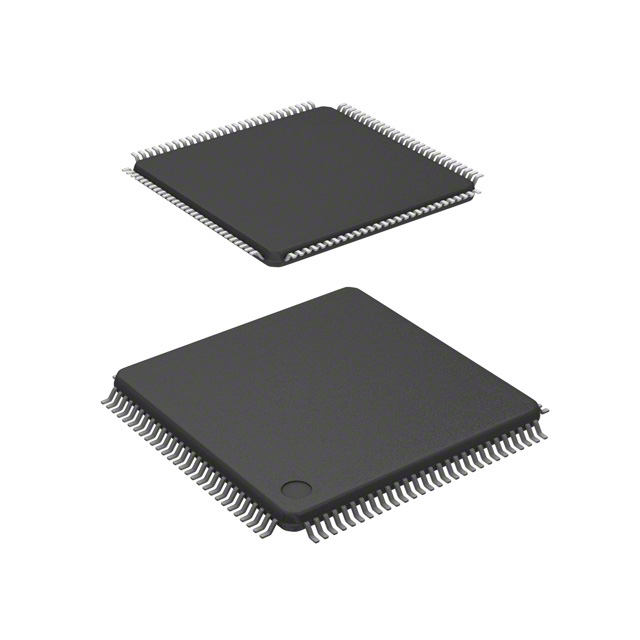

The R5F563TEAGFH#V1 is a 32-bit microcontroller from the Renesas RX63T series, featuring an RX core with a maximum operating frequency of 100 MHz. It integrates 512 kB of program memory and 48 kB of data RAM within an LQFP-112 package. The device supports a supply voltage range of 4 V to 5.5 V and includes multiple communication interfaces such as CAN, I2C, SCI, and USB.

Microcontrollers Feature Summary

• Integrates an on-chip floating-point unit (FPU) for enhanced computational performance.
• Supports simultaneous sampling across multiple channels using dual 12-bit ADCs.
• Includes dedicated hardware modules for high-speed PWM generation suitable for motor control.

Microcontrollers Applications

• Industrial motor drive systems
• Inverter and converter control units
• General-purpose embedded applications requiring high-speed processing

Microcontrollers Procurement Notes

Verify the specific suffix against official Renesas documentation to confirm pinout compatibility and temperature ratings. Confirm current production status, as availability may vary by region. Ensure ESD handling protocols are followed during assembly due to surface-mount packaging requirements.

Microcontrollers Selection Notes

Select this component when a 5V logic interface is required alongside high-performance 32-bit processing. Compare memory configurations against other RX63T variants to ensure sufficient storage for application code. Verify that the LQFP-112 footprint aligns with existing PCB layout constraints.

Microcontrollers Part Context

This part belongs to the RX63T group, designed for applications demanding precise control and fast execution speeds. The series is widely utilized in industrial automation and automotive subsystems where reliability and real-time processing capabilities are critical.

Microcontrollers Replacement Considerations

Consult the official RX Part Number Guide for verified substitutes. Cross-reference pinouts and memory sizes before replacing with similar RX63T models to maintain system compatibility.
