RAK5.8DBI

Description：5.8DBI FIBERGLASS ANTENNA FOR HE
Series：-
Mfr：RAKwireless
Package：Bulk

SKU:8b8e9b022ae7 Category: RF Antennas Brand: RAKwireless

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RAK5.8DBI is listed in the Antennas RF range at ChipApex. The manufacturer field lists RAKwireless. Its product description is 5.8DBI FIBERGLASS ANTENNA FOR HE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for RAK5.8DBI

Description：5.8DBI FIBERGLASS ANTENNA FOR HE
Series：-
Mfr：RAKwireless
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：866.5MHz
Frequency Range：863MHz ~ 870MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：5.8dBi
Features：-
Termination：N Type Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：31.496" (800.00mm)
Applications：LoRa
Power - Max：-

Antennas RF datasheet and documents for RAK5.8DBI

RAK5.8DBI

Antennas RF Overview

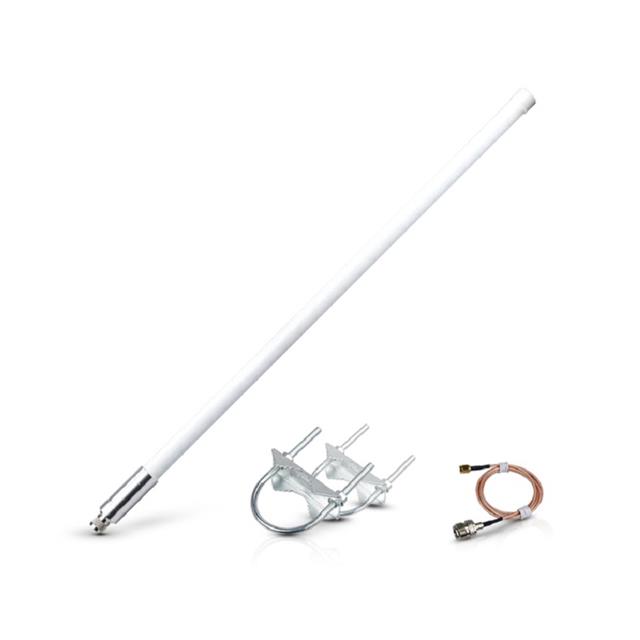

The RAK5.8DBI is a UHF whip antenna designed for the 863MHz to 870MHz frequency range, with a center frequency of 866.5MHz. It provides a gain of 5.8dBi and features an N-type male connector. The antenna utilizes a straight whip design and supports bracket mounting. It is intended for use in single-band applications within the specified frequency group.

Antennas RF Feature Summary

Straight whip antenna design for reliable signal transmission
Optimized for UHF band operations around 866.5MHz
N-type male connector for secure interface connection

Antennas RF Applications

LoRaWAN gateway installations
IoT sensor network base stations
Outdoor wireless communication systems

Antennas RF Procurement Notes

Verify the specific connector gender and frequency range compatibility with existing equipment before purchase. Confirm that the bracket mounting style aligns with the installation site requirements. Ensure the antenna meets local regulatory frequency allocations for the target region. Check for any recent product change notices or obsolescence updates from the manufacturer.

Antennas RF Selection Notes

Select this model when a moderate gain level of 5.8dBi is sufficient for the required coverage area. Consider the straight whip form factor for ease of installation on standard poles or brackets. Evaluate the N-type connector compatibility against the connected radio module or cable assembly. Assess environmental conditions to ensure the antenna construction suits the deployment location.

Antennas RF Part Context

This component belongs to the RF antenna category manufactured by RAKwireless. It is part of a lineup of antennas designed for IoT and LoRa applications. The specific model targets the European and other global UHF ISM bands commonly used for long-range low-power wide-area networks.
