RGT50TM65DGC9

$3.87

Description：IGBT TRENCH FS 650V 21A TO220NFM
Series：-

SKU:2dd9273c6e6c Category: Single IGBTs Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 650V 21A TO220NFM
Series：-
Mfr：Rohm Semiconductor
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：21 A
Current - Collector Pulsed (Icm)：75 A
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 25A
Power - Max：47 W
Switching Energy：-
Input Type：Standard
Gate Charge：49 nC
Td (on/off) @ 25°C：27ns/88ns
Test Condition：400V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr)：58 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-220-3 Full Pack
Supplier Device Package：TO-220NFM
Grade：-
Qualification：-

Download product information

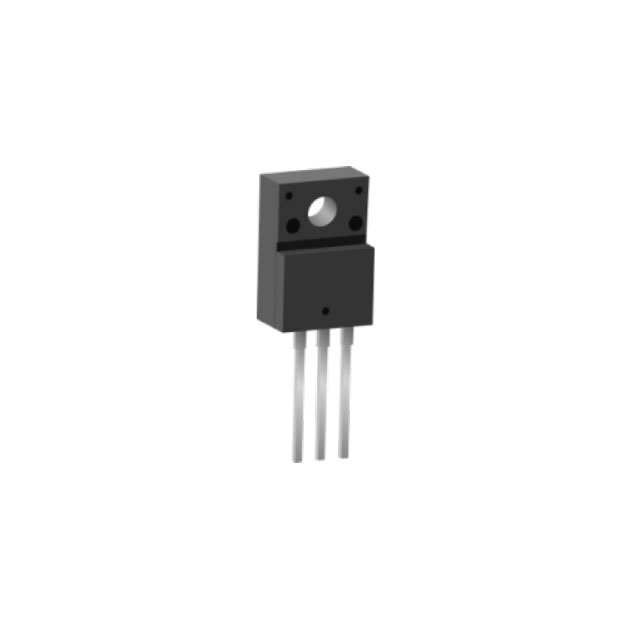

RGT50TM65DGC9

Overview

The RGT50TM65DGC9 is a trench field-stop IGBT from ROHM Semiconductor, designed for inverter applications with a 5µs short-circuit withstand time. It features a 650V collector-emitter voltage rating and a continuous collector current of 13A at 100°C. The typical saturation voltage is 1.65V, with a turn-off time of 65ns. A built-in fast recovery diode (FRD) complements the device. Packaged in TO-220NFM, it supports operation up to 175°C junction temperature and complies with RoHS standards.

Feature Summary

Trench field-stop technology for low saturation voltage and switching loss
Integrated very fast and soft recovery FRD
5µs short-circuit withstand capability

Applications

Inverter circuits
Industrial motor drives
Power supplies

Procurement Notes

Verify the specific suffix GC9 against official datasheets to confirm package and compliance details. Confirm availability status as this series may be designated for existing customers only. Check for product change notifications regarding manufacturing relocation or material updates before procurement.

Selection Notes

Select based on the 650V rating and 13A current capacity at elevated temperatures. Ensure thermal management supports the specified power dissipation. Verify that the 5µs short-circuit tolerance meets system protection requirements. Compare with other TO-220NFM options if higher current density is needed.

Part Context

This component belongs to the RGT50TM65D series, characterized by trench field-stop IGBT technology. It is part of ROHM's lineup for high-efficiency power switching. The GC9 suffix typically denotes the specific packaging and environmental compliance configuration for this variant.

Replacement Considerations

Direct substitutes include RGT40TM65DGC9 for lower current needs or RGT50NL65DGTL for surface mount applications. Verify pin compatibility and electrical parameters when cross-referencing with other ROHM IGBT models.
