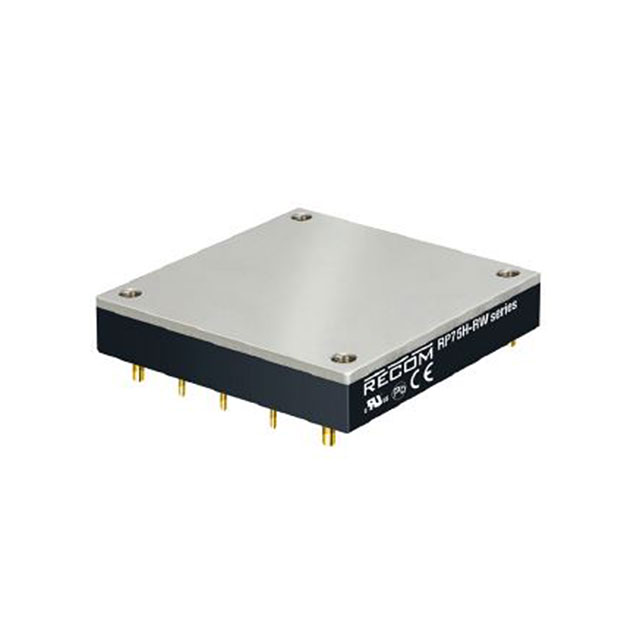

RP75H-2424SRW/N-HC

RP75H-2424SRW/N-HC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 24V 76W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP75H-2424SRW/N-HC

• Description：DC DC CONVERTER 24V 76W
• Series：POWERLINE RP75-RW (75W)
• Mfr：Recom Power
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.2A
• Power (Watts)：76 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.95" H (61.0mm x 57.9mm x 24.1mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RP75H-2424SRW/N-HC
