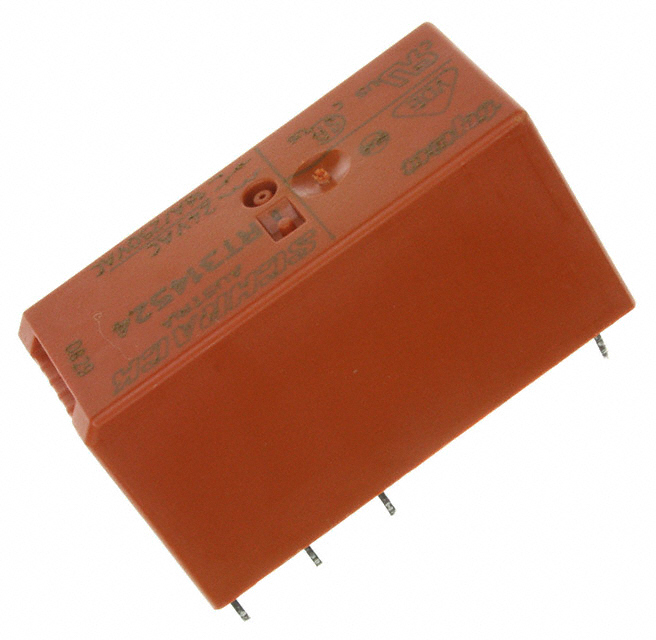

Power Relays, Over 2 Amps RT314524 product image

RT314524

$3.60

Description：RELAY GEN PURPOSE SPDT 16A 24V
Series：RT1, SCHRACK
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tube

SKU:e6515f638660 Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RT314524 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 16A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RT314524

Description：RELAY GEN PURPOSE SPDT 16A 24V
Series：RT1, SCHRACK
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tube
Mounting Type：Through Hole
Coil Voltage：24VAC
Contact Form：SPDT (1 Form C)
Contact Rating (Current)：16 A
Switching Voltage：400VAC - Max
Load - Max Switching：6400VA
Coil Current：14.2 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：Class F
Must Operate Voltage：18 VAC
Must Release Voltage：3.6 VAC
Operating Temperature：-40°C ~ 70°C
Contact Material：Silver Nickel (AgNi)
Approval Agency：CQC, CSA, cURus, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：8 ms
Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for RT314524

RT314524
