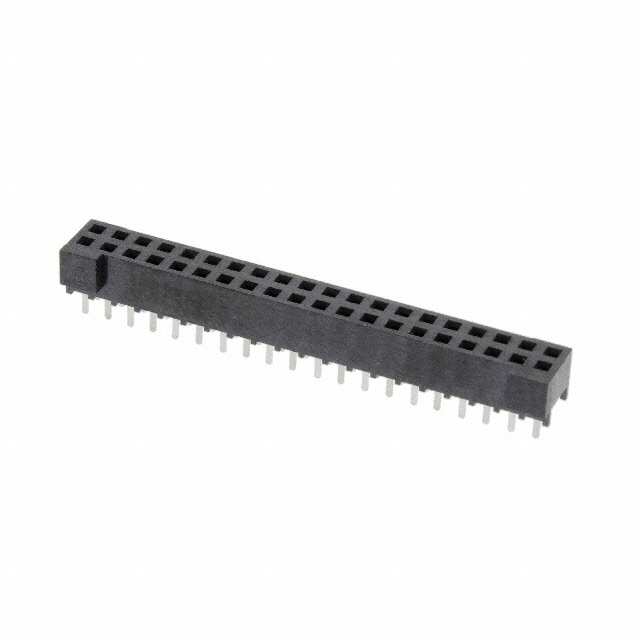

S2M-120-01-L-D

S2M-120-01-L-D is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN SOCKET 40POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for S2M-120-01-L-D

• Description：CONN SOCKET 40POS 0.079 GOLD PCB
• Series：Tiger Eye™ S2M
• Mfr：Samtec Inc.
• Package：Tube
• Connector Type：Socket
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.178" (4.51mm)
• Contact Length - Post：0.082" (2.08mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2.6A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for S2M-120-01-L-D
