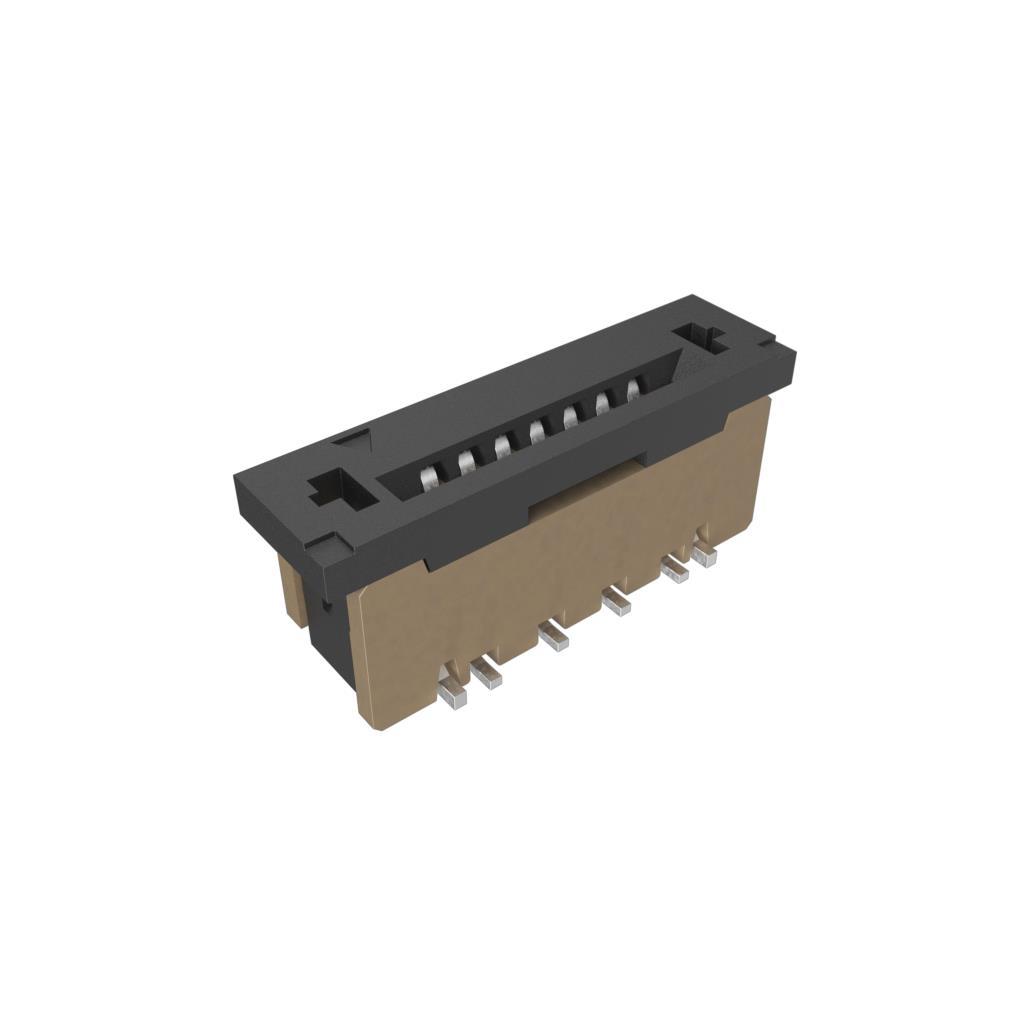

SFW7S-2STME1LF

SFW7S-2STME1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 7POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW7S-2STME1LF

• Description：CONN FFC FPC VERT 7POS 1MM SMD
• Series：SFW
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：7
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm, 0.33mm
• Height Above Board：0.209" (5.30mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Thermoplastic, Glass Filled
• Actuator Material：Thermoplastic, Glass Filled
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW7S-2STME1LF
