SGI02N120XKSA1

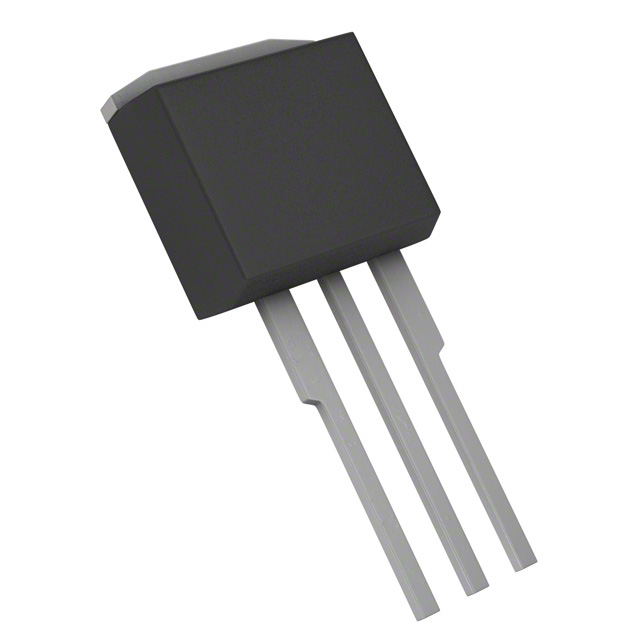

Description：IGBT NPT 1200V 6.2A TO262-3
Series：-

SKU:2b58304af099 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT NPT 1200V 6.2A TO262-3
Series：-
Mfr：Infineon Technologies
Package：Tube
IGBT Type：NPT
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：6.2 A
Current - Collector Pulsed (Icm)：9.6 A
Vce(on) (Max) @ Vge, Ic：3.6V @ 15V, 2A
Power - Max：62 W
Switching Energy：220µJ
Input Type：Standard
Gate Charge：11 nC
Td (on/off) @ 25°C：23ns/260ns
Test Condition：800V, 2A, 91Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA
Supplier Device Package：PG-TO262-3-1
Grade：-
Qualification：-

Download product information

SGI02N120XKSA1

Overview

The SGI02N120XKSA1 is a single NPT-technology IGBT transistor in a PG-TO-262-3-1 (I²PAK) package. It features a collector-emitter voltage of 1200 V and a DC collector current of 6.2 A at 25°C. The device offers a short circuit withstand time of 10 µs, an off-state energy loss of 0.08 mJ, and a maximum power dissipation of 62 W. Operating junction temperature ranges from -55°C to +150°C.

Feature Summary

Utilizes NPT technology for tight parameter distribution and parallel switching capability
Provides high ruggedness with temperature stable behavior
Features a 10 µs short circuit withstand time

Applications

Motor controls
Inverter circuits
Switching mode power supplies

Procurement Notes

Verify the component against the official Infineon datasheet SGx02N120 Rev 2.3. Confirm the specific PG-TO-262-3-1 package marking GI02N120 matches the physical unit. Ensure the part meets RoHS compliance standards as specified in the manufacturer documentation.

Selection Notes

Select this component for applications requiring robust NPT technology and high thermal stability. Consider the 1200 V rating and 6.2 A continuous current capacity for medium-power switching requirements. Evaluate the 10 µs short circuit tolerance for protection circuit design.

Part Context

This component belongs to the SGx02N120 family of fast IGBTs manufactured by Infineon Technologies. The series includes variants such as SGP02N120 and SGD02N120, differentiated primarily by their respective lead frame packages while maintaining identical electrical characteristics.

Replacement Considerations

Direct substitutes within the same family include SGP02N120XKSA1 and SGD02N120XKSA1. These parts share identical electrical specifications but utilize different package formats.
