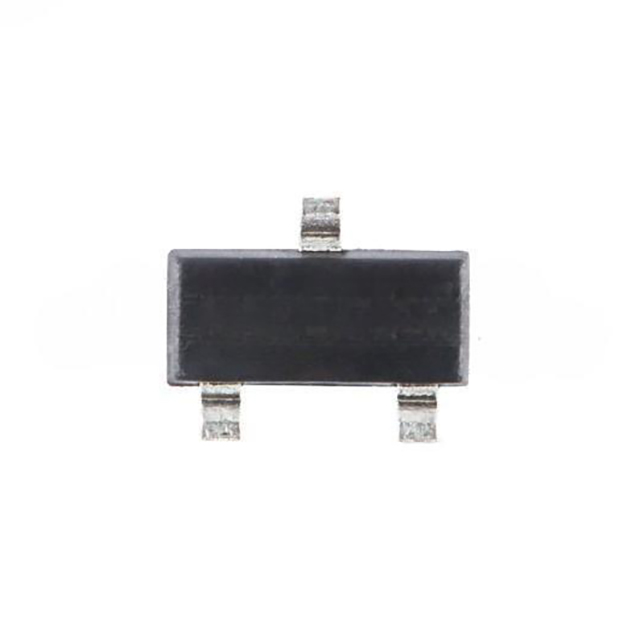

SI2310A is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists UMW. Its product description is 60V 3A 90MR@10V,3A 1.38W 3V@250A. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for SI2310A
- Description：60V 3A 90MR@10V,3A 1.38W 3V@250A
- Series：UMW
- Mfr：UMW
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：80mOhm @ 3A, 10V
- Vgs(th) (Max) @ Id：3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：10 nC @ 4.5 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：780 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：1.38W (Ta)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：SOT-23
- Package / Case：TO-236-3, SC-59, SOT-23-3
Single FETs, MOSFETs datasheet and documents for SI2310A
Single FETs, MOSFETs Overview
The SI2310A is a 60V N-Channel Enhancement Mode MOSFET manufactured by UMW in an SOT-23 package. It features a Drain-Source Voltage (VDSS) of 60V and a continuous Drain Current (ID) of 3A at 25°C, reducing to 2.3A at 70°C. The device exhibits a maximum static Drain-Source On-Resistance (RDS(on)) of 80mΩ at VGS=10V/ID=3A and 95mΩ at VGS=4.5V/ID=2A. Power dissipation is rated at 1.38W at 25°C with a thermal resistance (RthJA) of 90°C/W. The Gate Threshold Voltage ranges from 1V to 3V.
Single FETs, MOSFETs Feature Summary
- Advanced trench process technology for ultra-low on-resistance
- High density cell design for improved power handling capability
- Surface mount SOT-23 package optimized for portable applications
Single FETs, MOSFETs Applications
- Load switching for portable devices
- DC/DC converter circuits
- Battery switch management systems
Single FETs, MOSFETs Procurement Notes
Verify the manufacturer marking matches UMW specifications. Confirm the package type is SOT-23 and the ordering code corresponds to the tape and reel delivery mode with a base quantity of 3000 units. Ensure the component meets RoHS compliance standards as indicated in the datasheet documentation.
Single FETs, MOSFETs Selection Notes
Select this component when a 60V N-Channel MOSFET is required for low-side switching applications. Consider the 80mΩ RDS(on) at 10V gate drive for efficiency. Evaluate the 1.38W power dissipation limit against thermal constraints. The SOT-23 form factor suits space-constrained designs requiring surface mount assembly.
Single FETs, MOSFETs Part Context
This part belongs to the UMW SI23xx series of plastic-encapsulated MOSFETs. It utilizes TrenchFET technology to achieve low on-resistance within a compact footprint. The series is designed for general-purpose switching applications where high current handling and low thermal resistance are critical performance factors.
Single FETs, MOSFETs Replacement Considerations
Cross-reference with SI2310 or SI2303 if voltage ratings align. Verify pinout compatibility (Gate, Source, Drain) before substitution. Check that replacement parts meet the same 60V VDSS and 3A ID requirements.
