SLY 3 041 16 G

Headers, Male Pins Overview

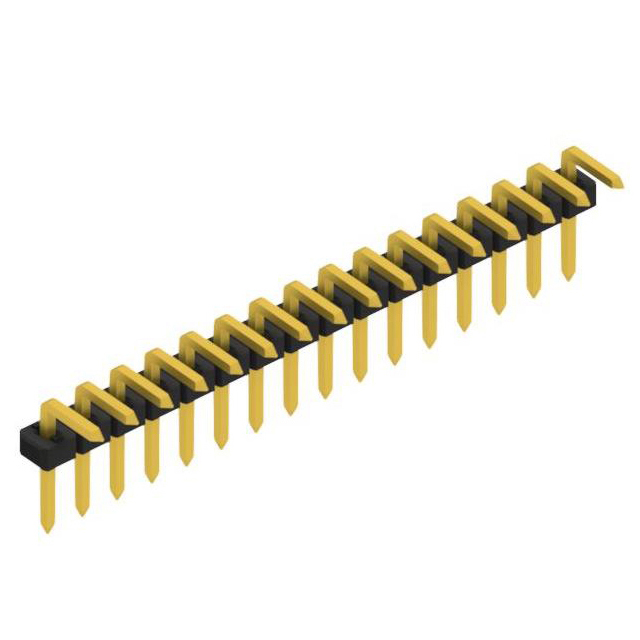

The SLY 3 041 16 G is a male pin header connector manufactured by Fischer Elektronik. It features a 2.00 mm pitch and contains 16 contacts arranged in a single row. The component utilizes a through-hole mounting style with a right-angle configuration, designed for board-to-board or wire-to-board connections. The contacts are constructed from CuSn-alloy and feature gold plating, while the contact sleeves include a nickel layer of at least 0.2 micrometers.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for secure PCB integration
• Gold-plated contacts on CuSn-alloy base material for reliable conductivity
• Single-row layout with 2.00 mm pitch spacing

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring right-angle headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' corresponds to the required gold plating specification as defined in the official datasheet. Confirm that the right-angle orientation matches the mechanical constraints of the target PCB layout. Ensure the 16-position count aligns with the circuit requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with a 2.00 mm pitch is required. The 16-contact configuration suits applications needing moderate I/O density. Consider the through-hole technology compatibility and the specific contact surface finish requirements for the intended operating environment.

Headers, Male Pins Part Context

This part belongs to the SLY 3 series of pin headers from Fischer Elektronik. The series offers various contact counts and configurations. The SLY 3 041 16 G specifically provides a 16-position option within the 2.00 mm pitch family, maintaining consistent mechanical and electrical characteristics across the series.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitute part numbers within the same series. Verify compatibility regarding pitch, contact count, and mounting style before considering alternatives.
