SML-LX2835GYC-TR

LED Indication - Discrete Overview

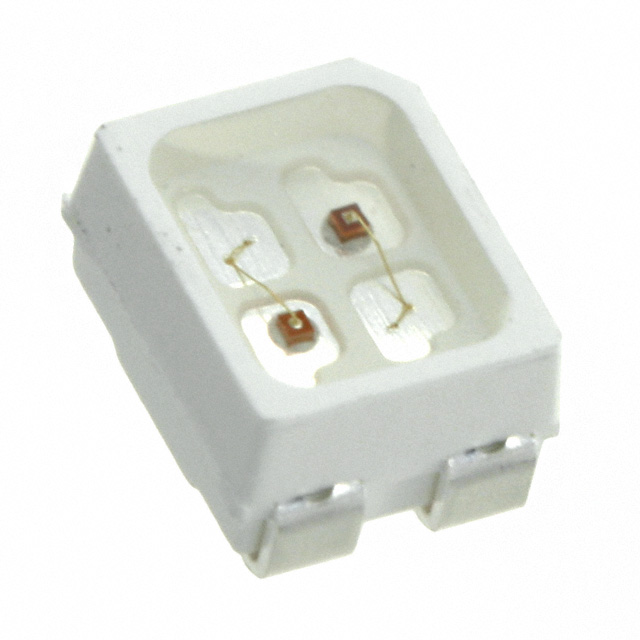

The SML-LX2835GYC-TR is a bi-color surface-mount LED manufactured by Lumex Opto/Components Inc. It features green and yellow emission with peak wavelengths of 565nm and 590nm, respectively. The component utilizes a 4-SMD J-Lead package measuring 3.20mm in length and 2.70mm in width, with a maximum height of 1.80mm. It operates at a forward current of 20mA for both colors, with typical forward voltages of 2.2V for green and 2.0V for yellow. The lens offers a 120-degree viewing angle and water-clear transparency.

LED Indication - Discrete Feature Summary

• Dual-color configuration providing independent green and yellow light output within a single compact package.
• Water-clear rectangular lens design optimized for high visibility and consistent light transmission.
• Standardized 2835 form factor compatible with automated surface-mount assembly processes.

LED Indication - Discrete Applications

• Status indication on electronic control panels
• Multi-state signaling in industrial machinery interfaces
• Visual alerts in consumer appliance displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lumex documentation to confirm wavelength and intensity binning. Ensure compatibility with RoHS3 and REACH standards as required by your supply chain regulations. Confirm moisture sensitivity level (MSL 3) handling procedures during storage and reflow soldering to prevent package damage.

LED Indication - Discrete Selection Notes

Select this component when dual-color status indication is required in space-constrained designs. Compare forward voltage requirements against available drive circuits to ensure proper current limiting. Evaluate the 120-degree viewing angle against optical system constraints to guarantee adequate visibility from intended observation positions.

LED Indication - Discrete Part Context

This part belongs to the Lumex SML-LX2835 series of bi-color LEDs. It shares mechanical dimensions with other variants in the family but differs in semiconductor materials to achieve specific color outputs. The TR suffix indicates tape-and-reel packaging for high-volume manufacturing integration.

LED Indication - Discrete Replacement Considerations

SML-LX2835IGC-TR: Offers red/green combination with similar electrical characteristics. SML-LX2835SISUGCTR: Provides red/green output with different luminous intensity ratings. Verify pinout and thermal performance before substitution.
