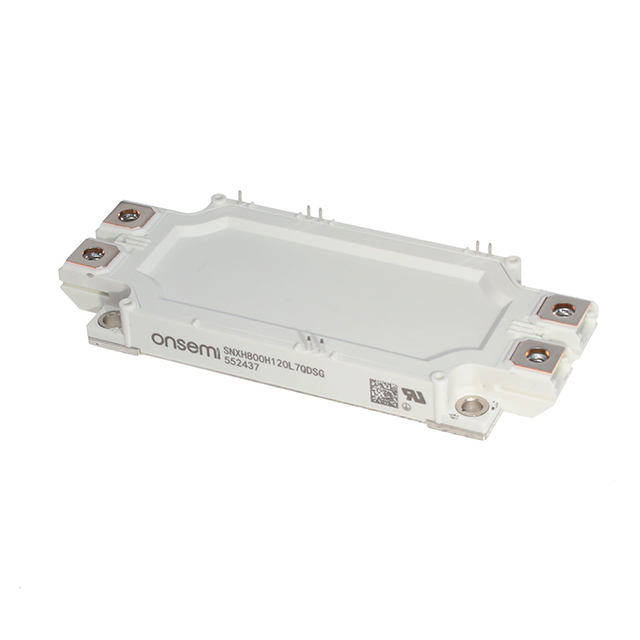

SNXH800H120L7QDSG

$164.69

Description：QDUAL3 1200 V 800 A HALF BRIDGE
Series：-

SKU:e5134ccc8f3e Category: IGBT Modules Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：QDUAL3 1200 V 800 A HALF BRIDGE
Series：-
Mfr：onsemi
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：1.85V @ 15V, 800A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：11-PIM (152x62.15)
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：800 A
Power - Max：-
Current - Collector Cutoff (Max)：100 µA
Input Capacitance (Cies) @ Vce：94300 pF @ 25 V

Download product information

SNXH800H120L7QDSG

Overview

The SNXH800H120L7QDSG is a 1200V, 800A rated half-bridge IGBT power module from onsemi's QDual3 series. It utilizes Field Stop 7 (FS7) trench IGBT and Gen 7 diode technology to achieve high power density and efficiency. The module features an isolated substrate and low-inductance layout, with an IGBT Vce(sat) of 1.75V at 175°C. It includes an integrated NTC thermistor for thermal monitoring and is designed for robust operation in demanding environments.

Feature Summary

Integrates FS7 IGBT and Gen 7 diode technology for reduced switching and conduction losses
Features an isolated substrate and low-inductance layout for improved reliability
Includes an integrated NTC thermistor for precise thermal management
Designed with press-fit pins for secure mounting and thermal performance

Applications

Solar inverters for renewable energy systems
Energy Storage Systems (ESS)
Commercial Agricultural Vehicles (CAV)
Industrial motor drives and servo drives
Uninterruptible Power Supplies (UPS)

Procurement Notes

Verify the specific suffix 'SNXH' against official datasheets to confirm automotive-grade qualification requirements. Ensure compatibility with existing thermal interface materials and mounting hardware for press-fit installation. Cross-reference part numbers with manufacturer updates to avoid obsolete variants.

Selection Notes

Select this module for applications requiring high current capacity within a compact form factor. Consider the 1.75V saturation voltage for thermal design calculations at elevated temperatures. Evaluate system-level inductance requirements to leverage the module's low-inductance design effectively.

Part Context

This component belongs to onsemi's QDual3 family, representing the 7th generation of IGBT technology. It succeeds previous generations by offering higher power density and lower losses within the same footprint, targeting next-generation industrial and renewable energy converters.

Replacement Considerations

Direct substitutes include the NXH800H120L7QDSG variant, which shares identical electrical specifications but may differ in automotive qualification status. Verify pinout and thermal characteristics before swapping.
