SP8J2TB

Overview

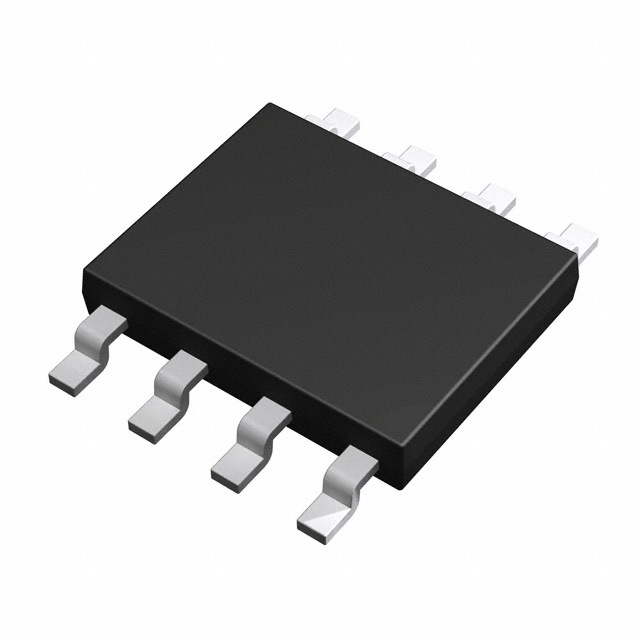

The SP8J2TB is a dual P-channel MOSFET array manufactured by Rohm Semiconductor, housed in an 8-SOIC package. It features a logic-level gate design suitable for low-voltage switching applications. The device supports a maximum drain-source voltage of 30V and a continuous drain current of 4.5A per channel. Total power dissipation is rated at 2W under specified conditions. This component integrates two independent P-channel FETs within a single compact surface-mount enclosure, facilitating efficient circuit board space utilization.

Feature Summary

• Dual P-channel configuration providing two independent switching channels in one package
• Logic-level gate architecture enabling direct interface with standard digital logic signals
• Compact 8-SOIC surface-mount packaging designed for automated assembly processes

Applications

• Low-side and high-side switching circuits for portable electronic devices
• Load switching applications in battery-powered consumer electronics
• General-purpose signal routing and isolation in embedded systems

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required tape-and-reel or cut-tape quantities. Confirm that the 8-SOIC footprint matches your PCB layout constraints. Check RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure thermal management strategies account for the 2W total power dissipation rating during operation.

Selection Notes

Select this component when a dual P-channel solution is required for space-constrained designs. The logic-level gate simplifies driver circuit complexity compared to standard threshold devices. Consider the 30V voltage rating to ensure adequate headroom for your system's supply rails. Evaluate the 4.5A current capability against peak load requirements to prevent thermal overstress.

Part Context

This part belongs to Rohm Semiconductor's discrete MOSFET array family, specifically designed for general-purpose switching tasks. The SP8J2TB variant offers a balanced combination of current handling and voltage blocking capabilities. It serves as a compact alternative to using separate discrete transistors, reducing component count and interconnection parasitics in modern electronic assemblies.

Replacement Considerations

Consult official cross-reference data for compatible substitutes. Verify pinout compatibility and electrical parameters such as Vgs(th) and Rds(on) before substitution. Ensure any replacement maintains the same 8-SOIC package dimensions for mechanical fit.
