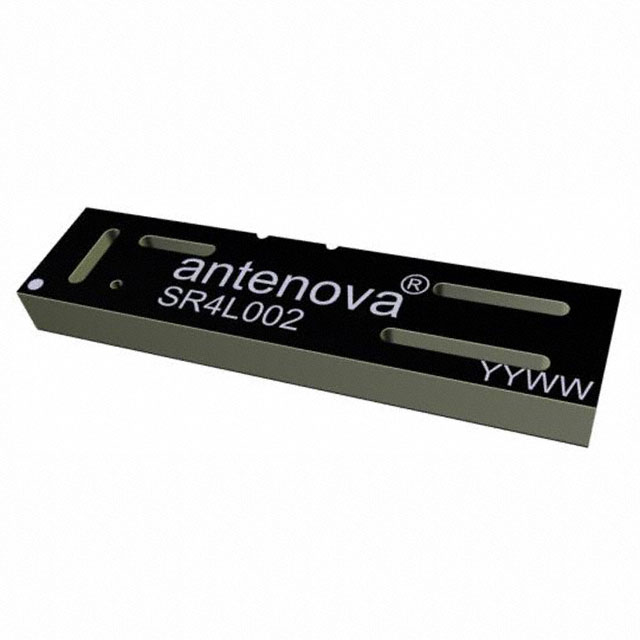

SR4L002

SR4L002 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is RF ANT 829MHZ/1.9GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SR4L002

• Description：RF ANT 829MHZ/1.9GHZ CHIP SLD
• Series：Lucida
• Mfr：Antenova
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：Cellular
• Frequency Group：Wide Band
• Frequency (Center/Band)：829MHz, 1.9GHz, 2.4GHz, 2.6GHz
• Frequency Range：698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz
• Antenna Type：Chip
• Number of Bands：4
• VSWR：3
• Return Loss：-5dB
• Gain：1dBi
• Features：-
• Termination：Solder
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Height (Max)：0.126" (3.20mm)
• Applications：LTE
• Power - Max：-

Antennas RF datasheet and documents for SR4L002
