STL50DN6F7

$1.50

Description：MOSFET 2N-CH 60V 57A POWERFLAT
Series：STripFET™

SKU:2e9155a893c9 Category: FET, MOSFET Arrays Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 60V 57A POWERFLAT
Series：STripFET™
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual)
FET Feature：-
Drain to Source Voltage (Vdss)：60V
Current - Continuous Drain (Id) @ 25°C：57A (Tc)
Rds On (Max) @ Id, Vgs：11mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：1035pF @ 30V
Power - Max：62.5W
Operating Temperature：-55°C ~ 175°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-PowerVDFN
Supplier Device Package：PowerFlat™ (5x6)
Grade：-
Qualification：-

Download product information

STL50DN6F7

Overview

The STL50DN6F7 is a dual N-channel Power MOSFET from STMicroelectronics, utilizing STripFET F7 technology with an enhanced trench gate structure. It operates at a 60 V breakdown voltage and features a typical on-state resistance of 9 mOhm. The device supports a continuous drain current of 57 A and is housed in a PowerFLAT 5x6 double island package. This configuration reduces internal capacitance and gate charge for faster switching efficiency.

Feature Summary

Dual N-channel configuration within a single compact package
STripFET F7 technology for low on-state resistance and reduced internal capacitance

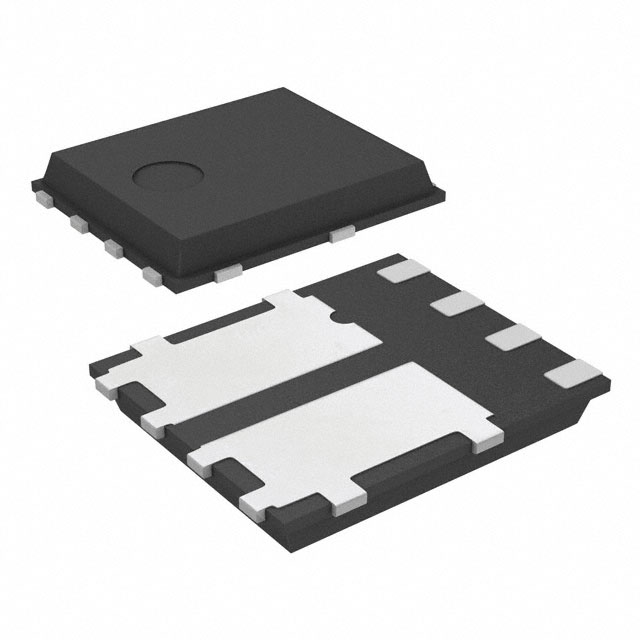

PowerFLAT 5x6 double island package design

Applications

Industrial motor control systems
DC-DC converter circuits
Power management modules

Procurement Notes

Verify the specific ordering code against the manufacturer's official datasheet to ensure compatibility with the required package variant. Confirm that the dual N-channel specification matches the circuit requirements before finalizing procurement decisions.

Selection Notes

Select this component when a dual N-channel topology is required in a space-constrained design. The STripFET F7 technology offers improved switching performance compared to previous generations, making it suitable for applications demanding high efficiency and thermal management within a small footprint.

Part Context

This part belongs to the STripFET F7 series of low-voltage power MOSFETs. It shares the enhanced trench-gate structure technology found in other models like the STL50N6F7, but differs by integrating two channels into one package for simplified board layout.
