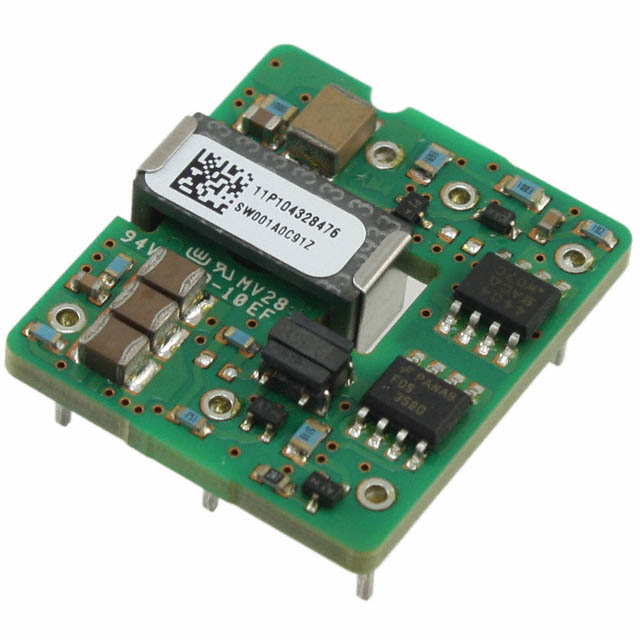

SW001A0C91Z

SW001A0C91Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 15V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SW001A0C91Z

• Description：DC DC CONVERTER 15V 15W
• Series：SW001
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：15 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
