SWPA3012S2R4NT

Fixed Inductors Overview

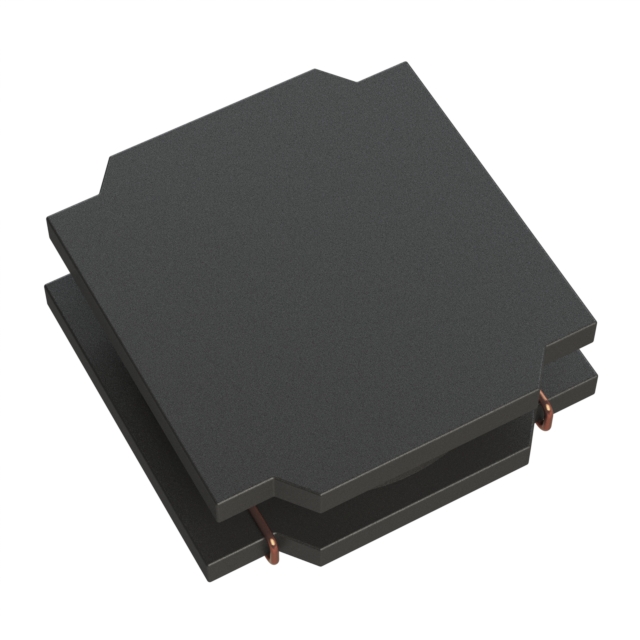

The SWPA3012S2R4NT is a shielded drum core, wirewound power inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an inductance of 2.4 µH with a tolerance of ±20%. The component has a maximum DC resistance of 88 mΩ and operates within a temperature range of -55°C to +125°C. Key electrical specifications include a saturation current of 1.6 A and a non-standard rating current of 1.6 A. The device utilizes a ferrite core material and is available in a standard tape and reel packaging format.

Fixed Inductors Feature Summary

• Shielded drum core construction for reduced electromagnetic interference
• Wirewound technology ensuring high reliability and stability
• Non-standard rated current specification for specific application requirements

Fixed Inductors Applications

• DC-DC converter circuits
• Power supply modules
• Telecommunications equipment

Fixed Inductors Procurement Notes

Verify the exact part number suffix against official datasheets to confirm the specific current ratings and tolerance levels. Ensure that the supplier provides traceable documentation from Shenzhen Sunlord Electronics Co., Ltd. to guarantee authenticity. Check for RoHS compliance status if required for your specific manufacturing standards.

Fixed Inductors Selection Notes

Select this component when a 2.4 µH inductance value is required with a compact SMD footprint. Consider the 88 mΩ DC resistance for efficiency calculations in low-voltage applications. Verify that the 1.6 A saturation current meets the peak load requirements of the target circuit design.

Fixed Inductors Part Context

This component belongs to the SWPA series of shielded power inductors from Sunlord. The series is designed for surface mount applications requiring high current handling capabilities. The 3012 package size offers a balance between performance and board space efficiency for modern electronic devices.

Fixed Inductors Replacement Considerations

Consult official Sunlord documentation for direct cross-references. Generic replacements may differ in saturation current or DC resistance values. Verify pin compatibility and thermal characteristics before substitution.
