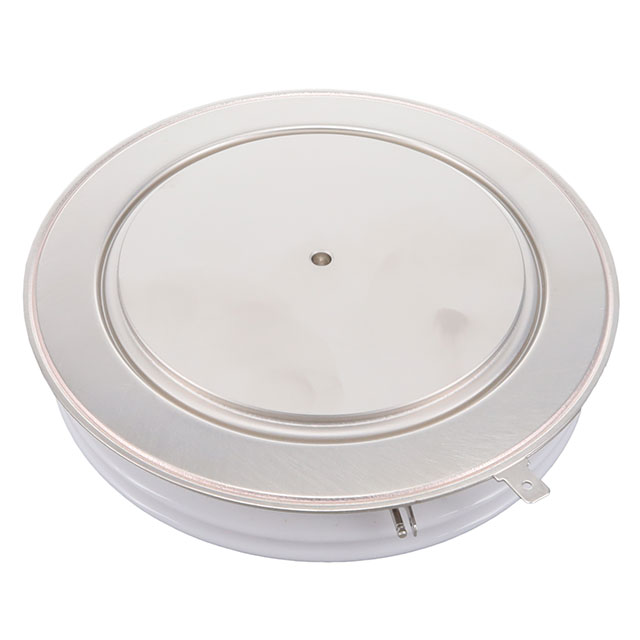

T3800N16TOFVTXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：STD THYR/DIODEN DISC BG-T11126K-
- Series：-
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：3800 A
- Current - On State (It (RMS)) (Max)：5970 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：63000A @ 50Hz
- Operating Temperature：135°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：TO-200AE
- Voltage - Gate Trigger (Vgt) (Max)：2.5 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The T3800N16TOFVTXPSA1 is a Phase Control Thyristor (PCT) manufactured by Infineon Technologies. It features a TO-200 package with four pins and a rated repetitive peak reverse voltage of 1600 V. The device supports an average on-state current of 3800 A and a surge current rating of 53 kA. Key electrical parameters include a maximum gate trigger current of 250 mA, a maximum gate trigger voltage of 2.5 V, and a holding current of 300 mA. The component operates within a temperature range of -40°C to 135°C and exhibits a peak on-state voltage of 1.28 V.
Feature Summary
- Engineered as a phase control thyristor for high-power industrial applications
- Designed for robust performance under high surge current conditions up to 53 kA
- Utilizes a disc-style TO-200 package configuration for mounting
Applications
- High-power industrial rectification systems
- Industrial motor drive controls
- Resistive load heating applications
Procurement Notes
Verify the specific ordering suffix and manufacturer part number against official Infineon documentation before procurement. Confirm availability status as discontinuation notifications may apply. Ensure compatibility with existing thermal management and mechanical mounting requirements for the TO-200 package. Cross-reference datasheet revisions to validate electrical characteristics match design specifications.
Selection Notes
Select this component based on the required 1600 V blocking voltage and 3800 A continuous current capacity. Evaluate the 53 kA surge capability against potential fault currents in the circuit. Consider the TO-200 form factor for mechanical integration. Verify that the gate trigger requirements align with the available drive circuitry capabilities.
Part Context
This part belongs to the T3800N series of phase control thyristors from Infineon Technologies. These devices are designed for demanding power electronics applications requiring high current handling. The TO-200 package provides a standardized interface for high-power disc thyristors, facilitating integration into large-scale industrial equipment and power conversion systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided data. Consult official Infineon resources for cross-referencing alternatives if this component is discontinued or unavailable.
