TFM-130-22-L-D-A-P

Headers, Male Pins Overview

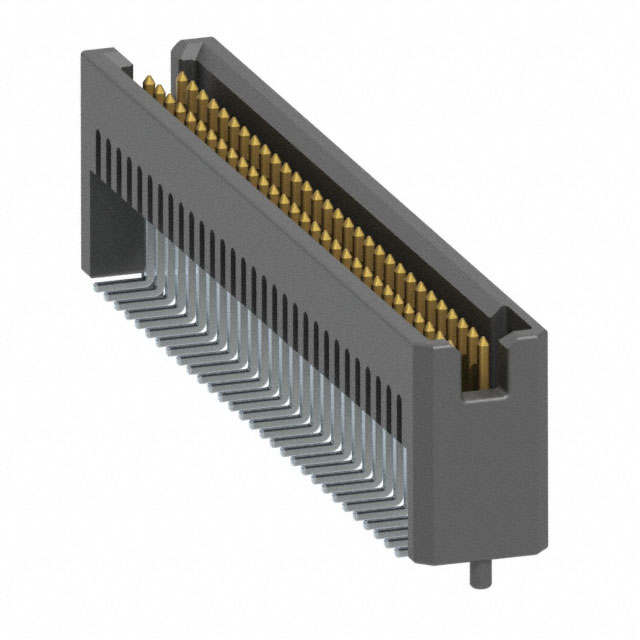

The TFM-130-22-L-D-A-P is a surface mount header connector from Samtec's Tiger Eye series. It features a 1.27mm pitch and consists of 60 positions arranged in a double row configuration. The component utilizes shrouded box headers designed for board-to-board or wire-to-board applications. It supports wire gauges ranging from 30 AWG to 28 AWG and operates within a minimum temperature range of -55°C.

Headers, Male Pins Feature Summary

• Shrouded box header design ensures secure mating alignment
• Supports high-speed data transmission up to 8 Gbps
• Compatible with locking clip or screw options for stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-reliability electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against official Samtec documentation to confirm exact pin count, termination style, and packaging type. Ensure compatibility with mating sockets and verify RoHS compliance status for your specific manufacturing requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring precise 1.27mm spacing and robust mechanical retention. Consider the surface mount termination for automated assembly processes. Evaluate the need for locking mechanisms if vibration resistance is critical for the target environment.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye TFM series, known for high-density interconnect solutions. The series offers various configurations including right-angle and vertical orientations. It is engineered for demanding environments requiring reliable signal integrity and mechanical durability.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not match the specific shrouding dimensions or contact plating specifications required for proper function.
