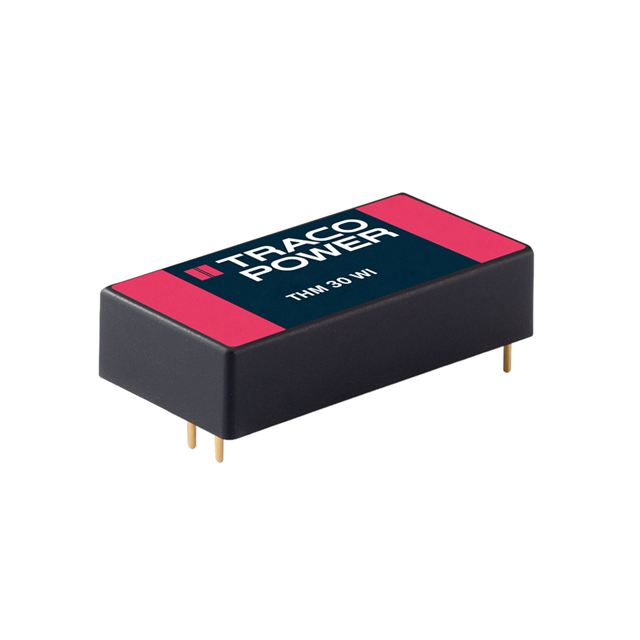

THM 30-4813WI

THM 30-4813WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 15V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THM 30-4813WI

• Description：DC DC CONVERTER 15V 30W
• Series：THM 30WI (30W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：30 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：OCP, OTP, OVP, SCP
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
