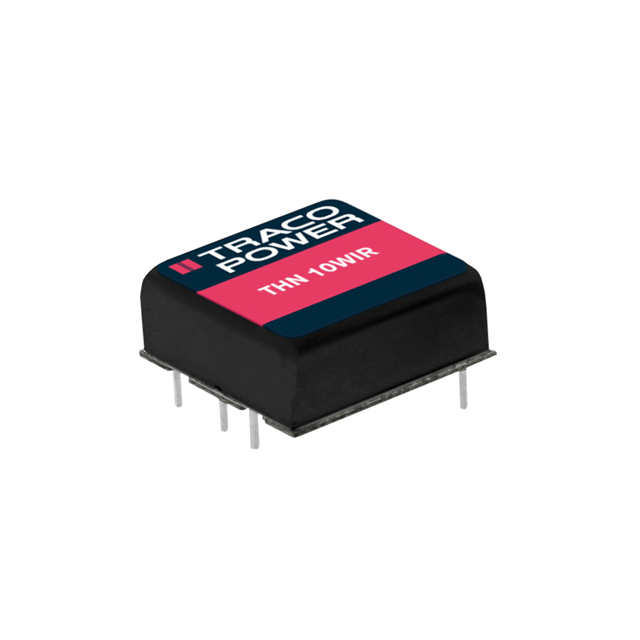

THN 10-7215WIR

THN 10-7215WIR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 24V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THN 10-7215WIR

• Description：DC DC CONVERTER 24V 10W
• Series：THN 10WIR (10W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：420mA
• Power (Watts)：10 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for THN 10-7215WIR
