TLHR6405

LED Indication - Discrete Overview

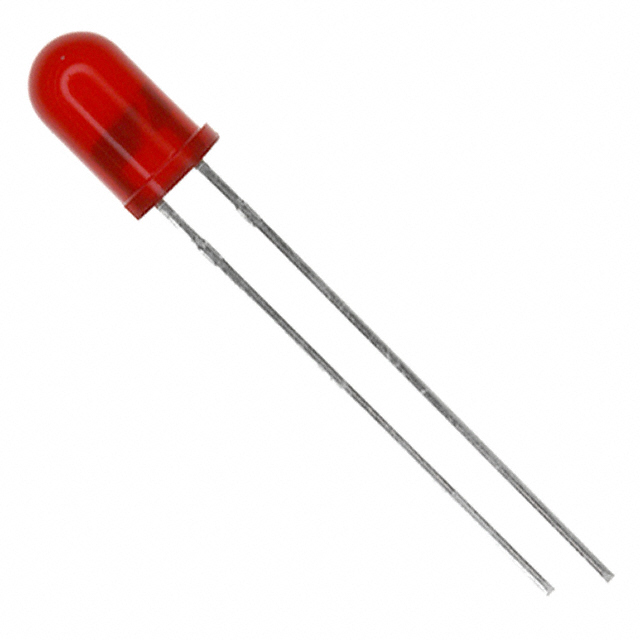

The TLHR6405 is a high-efficiency red LED indicator from Vishay Semiconductor Opto Division, housed in a 5 mm tinted diffused package. It operates at a wavelength of 619 nm with a forward voltage of approximately 2V and a maximum forward current of 30 mA. The component features a radial through-hole mounting style and delivers an optical output suitable for discrete indication applications.

LED Indication - Discrete Feature Summary

• High efficiency performance within a compact 5 mm form factor
• Tinted diffused lens design for optimized light distribution
• Red spectral emission centered at 619 nm

LED Indication - Discrete Applications

• Discrete visual status indication
• Panel mount signaling devices
• Consumer electronics front panels

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm package type and bin selection. Ensure the procurement channel provides original manufacturer documentation. Confirm RoHS compliance status matches project requirements. Check for any obsolete status or lifecycle changes before finalizing supply chain plans.

LED Indication - Discrete Selection Notes

Select this component when a red visible indicator with high luminous intensity is required. The 5 mm size is standard for many legacy and modern panel designs. Consider the diffused lens characteristic if uniform illumination is preferred over a focused beam. Verify thermal management needs based on the 30 mA maximum rating.

LED Indication - Discrete Part Context

This part belongs to Vishay's discrete LED portfolio, specifically designed for general-purpose indication. It complements other 5 mm LEDs in the series, offering consistent quality and reliability standards typical of Vishay's optoelectronic division products for industrial and consumer markets.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 5 mm red LEDs from Vishay such as the TLCR5100 series for similar specifications. Ensure pin compatibility and mechanical dimensions match the existing PCB footprint before substitution.
