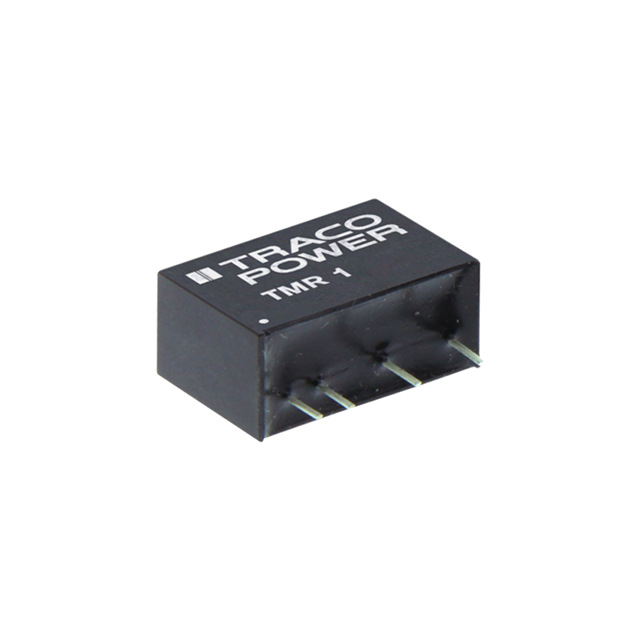

TMR 1-0523

TMR 1-0523 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 990MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 1-0523

• Description：DC DC CONVERTER +/-15V 990MW
• Series：TMR 1 (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：33mA, 33mA
• Power (Watts)：990 mW
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：6-SIP Module, 5 Leads
• Size / Dimension：0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm)
• Supplier Device Package：Module
• Control Features：-
• Approval Agency：CB, CSA
• Standard Number：-

DC DC Converters datasheet and documents for TMR 1-0523
