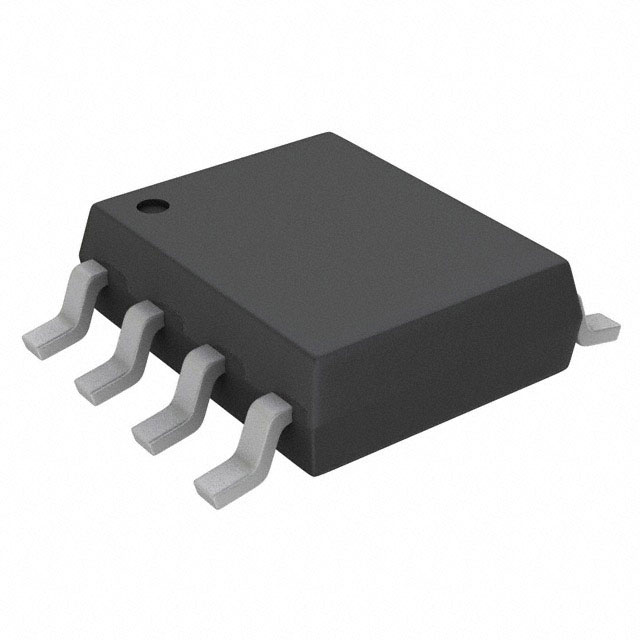

The TPC8227-H is a dual N-channel MOSFET from Toshiba Semiconductor and Storage, utilizing U-MOS-H technology. It features a SOP-8 package with pins 1 and 3 as sources, pins 2 and 4 as gates, and pins 5 through 8 as drains. The device supports a drain-source voltage of 40 V and a continuous drain current of 5.1 A. Key electrical parameters include a typical on-resistance of 22 mΩ at VGS = 10 V and a gate switch charge of 2.4 nC. Operating temperatures range from -55°C to 150°C.
Verify the specific ordering suffix against the manufacturer's official documentation to confirm environmental compliance status, such as RoHS compatibility. Confirm the package type matches the required SOP-8 footprint and pinout configuration before finalizing procurement orders.
Select this component for applications requiring dual N-channel switching within a small form factor. Ensure the design accounts for the 40 V drain-source voltage limit and the 5.1 A continuous current rating. Consider thermal resistance values when designing heat dissipation strategies for single or dual operation modes.
This part belongs to the TPC8227 series of silicon N-channel MOSFETs manufactured by Toshiba Semiconductor and Storage. It is designed for general-purpose switching applications where space efficiency and switching speed are critical factors in the circuit design.
Toshiba recommends the TPC8227-LQ as a substitute part number for the TPC8227-H.
The maximum drain-source breakdown voltage (V(BR)DSS) is 40 V.
Pins 1 and 3 are sources, pins 2 and 4 are gates, and pins 5, 6, 7, and 8 are drains.
The typical gate switch charge (QSW) is 2.4 nC.
